250 SIZE, 02100 SERIES, HOLD-DOWN
250 SIZE, 02100 SERIES, HOLD-DOWN
Regular price
$275.00 USD
Regular price
Sale price
$275.00 USD
Unit price
/
per
Couldn't load pickup availability

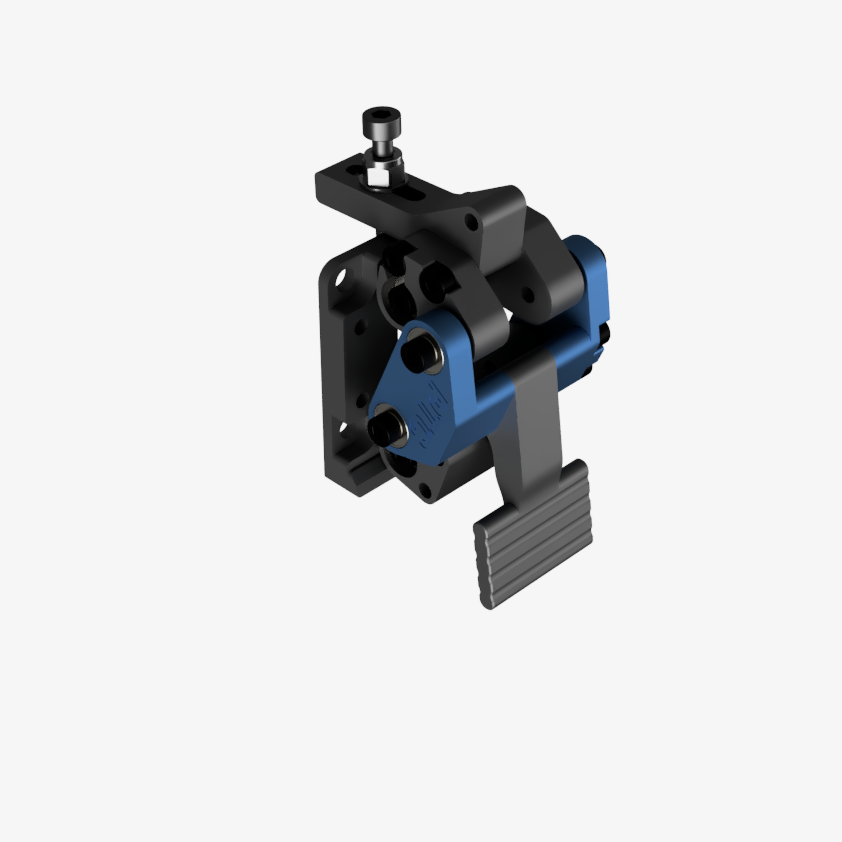

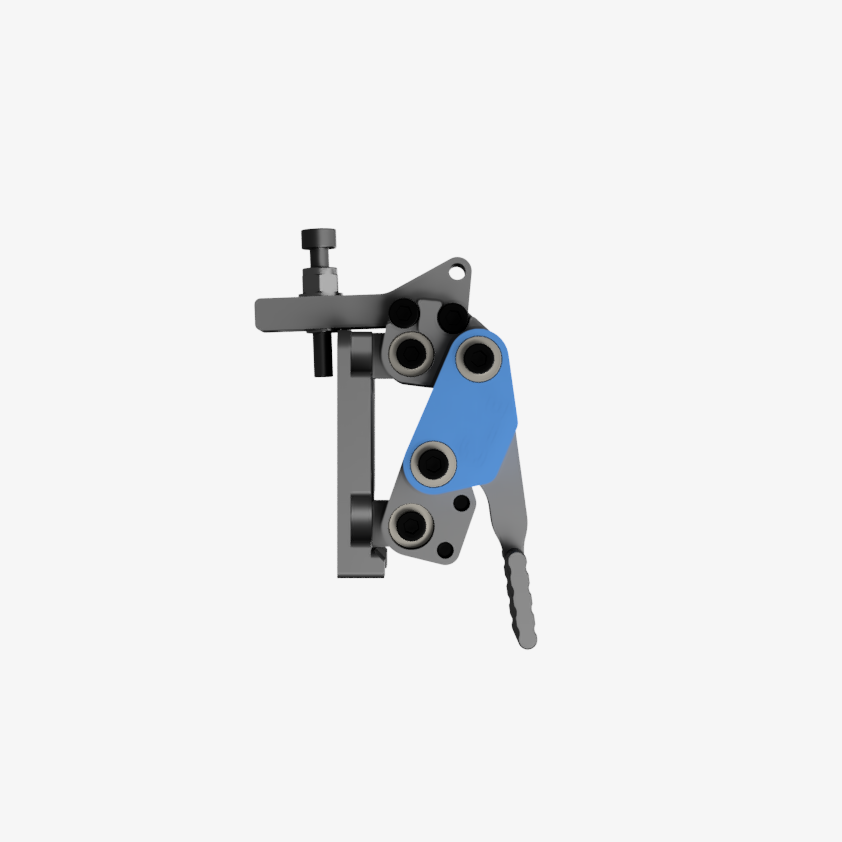

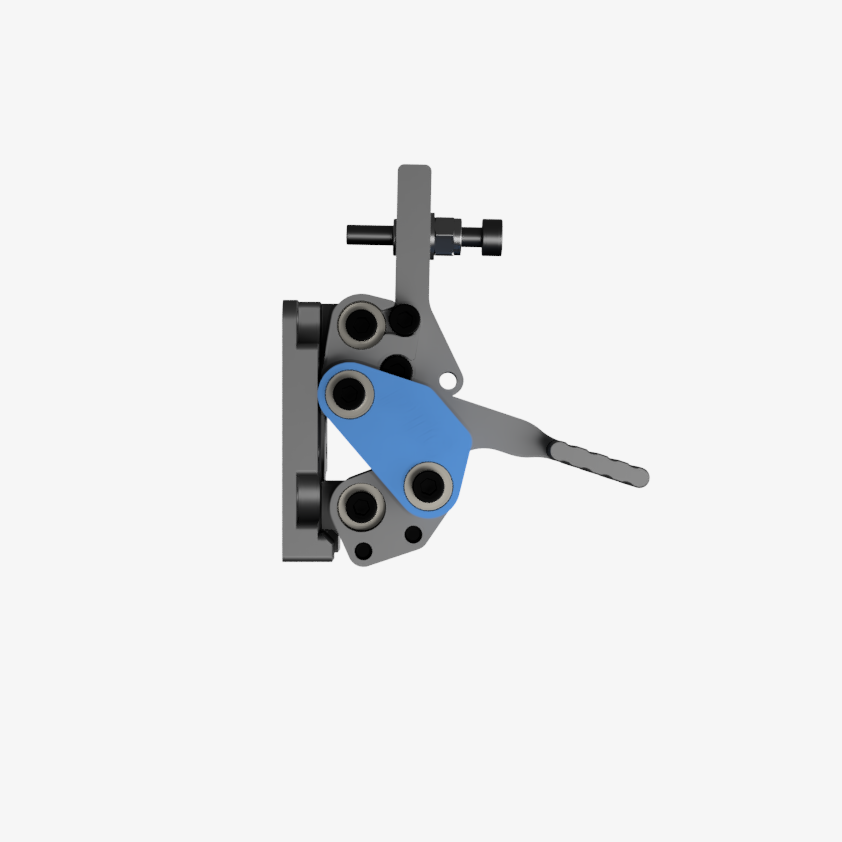

Our micro 250 size precision toggle clamp is approximately half the size of our 300 series and offers the same smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.
2100 series clamps provide hold-down clamping and mounts to a face parallel to the clamping direction. There is no lock in the retract direction. For ultra-low profile use the base can be removed and the clamp components mounted directly to a base plate with two screws. This clamp can also be reconfigured as a 2000 series with no additional parts.
| Max Clamp Force @ X.X N (X.X lb/ft on handle) | XX.X N (XX.X lb/ft) |
| Stroke | 89 Deg |
| Mounting Screws | M3 or #4 |
| Mounting Screw Pitch | 25mm or 1in Pitch Grid |
| Locking Direction | Push Only |
| Clamp Pad | M3 SHCS |
PDF 2D Drawing Files:
TBD
TBD
Autodesk Fusion 360 File:
3D STEP Files:
Solidworks 2023 File:
TBD
