Structural
These structural components parts allow you to build the framework of your next tooling or fixture project.
Baseplates
Our baseplates (or breadboards) provide a platform to quickly build tooling and fixtures. Machined from solid 6061 T6 aluminum, they are designed to provide ultimate mounting versatility. All holes are tapped and countersunk, allowing components to be mounted on them or easily mounted to another fixture while maintaining a flat working surface.
-

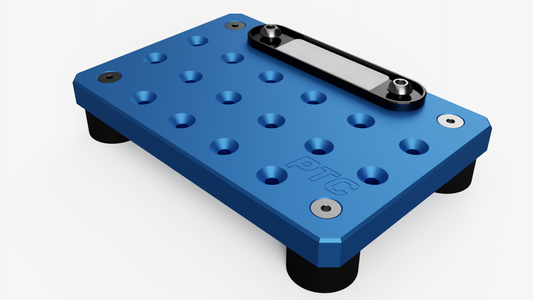

BASEPLATE, 100 SERIES, SIZE: 6x4
Regular price $70.00 USDRegular priceUnit price / per -

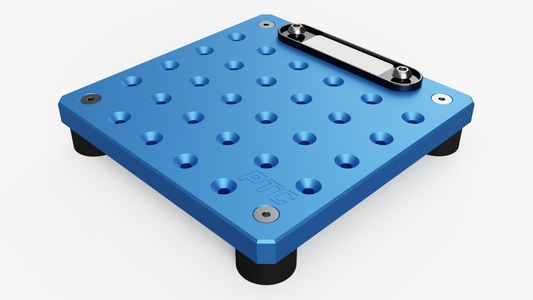

BASEPLATE, 100 SERIES, SIZE: 6x6
Regular price $80.00 USDRegular priceUnit price / per -

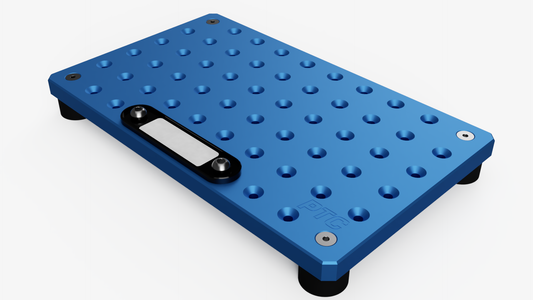

BASEPLATE, 100 SERIES, SIZE: 10x6
Regular price $105.00 USDRegular priceUnit price / per -

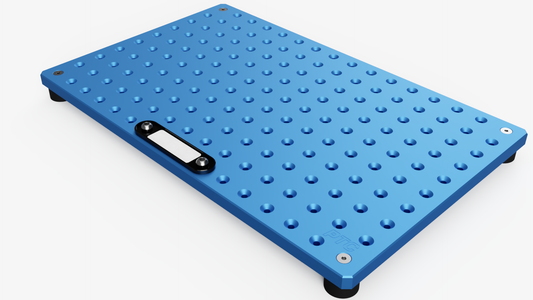

BASEPLATE, 100 SERIES, SIZE: 16x10
Regular price $185.00 USDRegular priceUnit price / per
Angle Supports
These right angle supports increase the rigidity of a fixture or allow components to be mounted vertically. The slots fit an M6 fastener and washer, making them compatible with any of our baseplates or clamps.
-

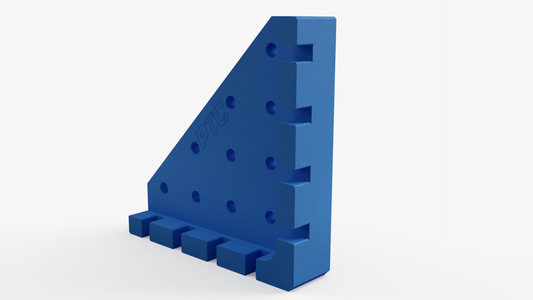

ANGLE SUPPORT, 100 SERIES, SIZE: 4x4
Regular price $55.00 USDRegular priceUnit price / per -

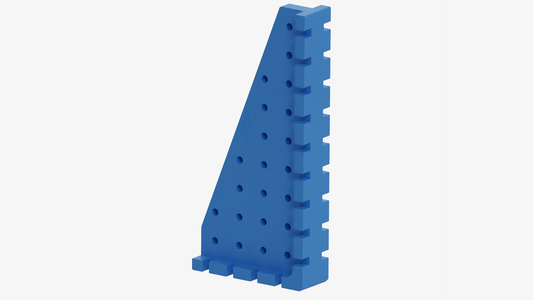

ANGLE SUPPORT, 100 SERIES, SIZE: 9x4
Regular price $90.00 USDRegular priceUnit price / per
