BASEPLATE, 100 SERIES, SIZE: 6x6

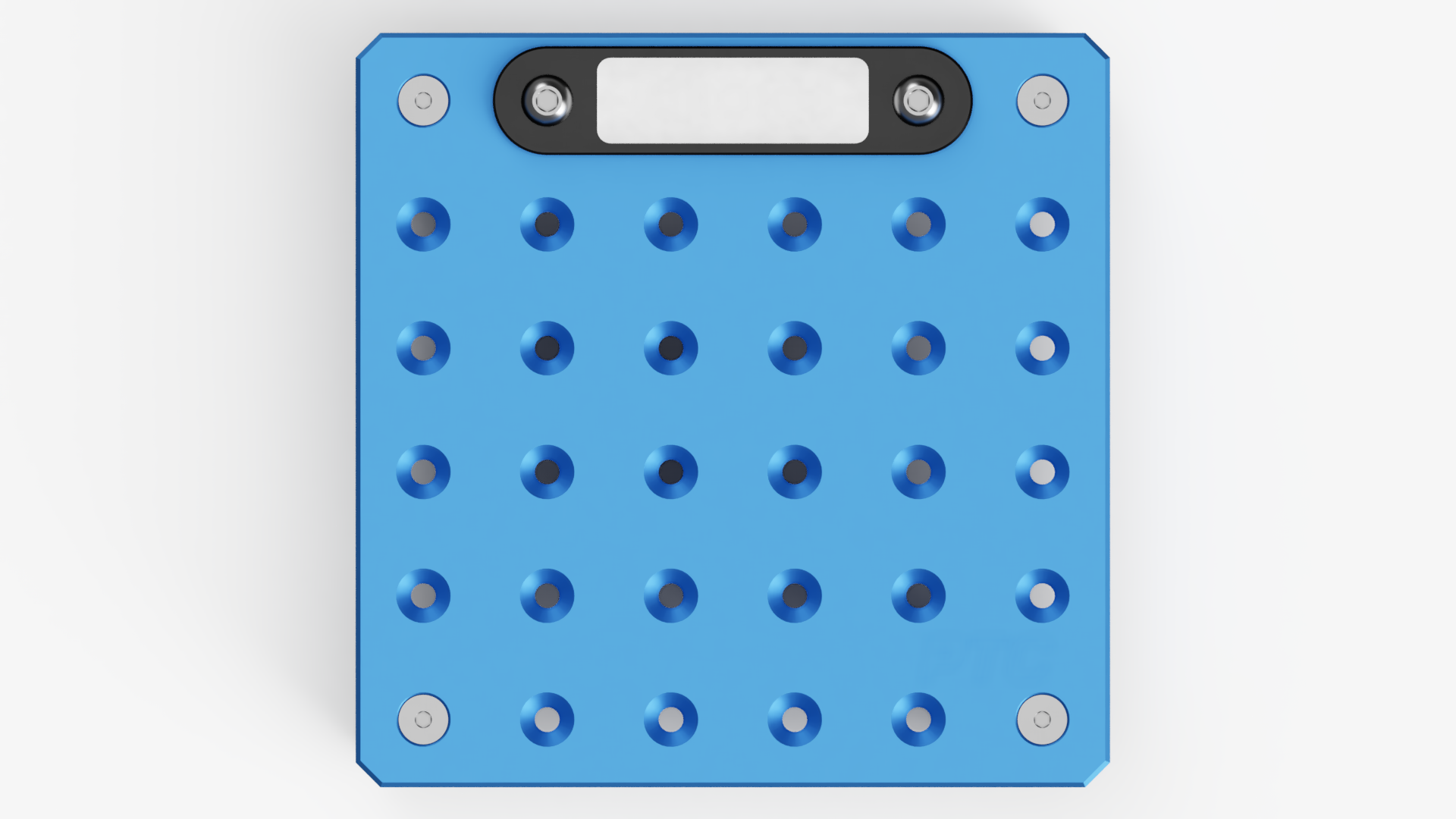

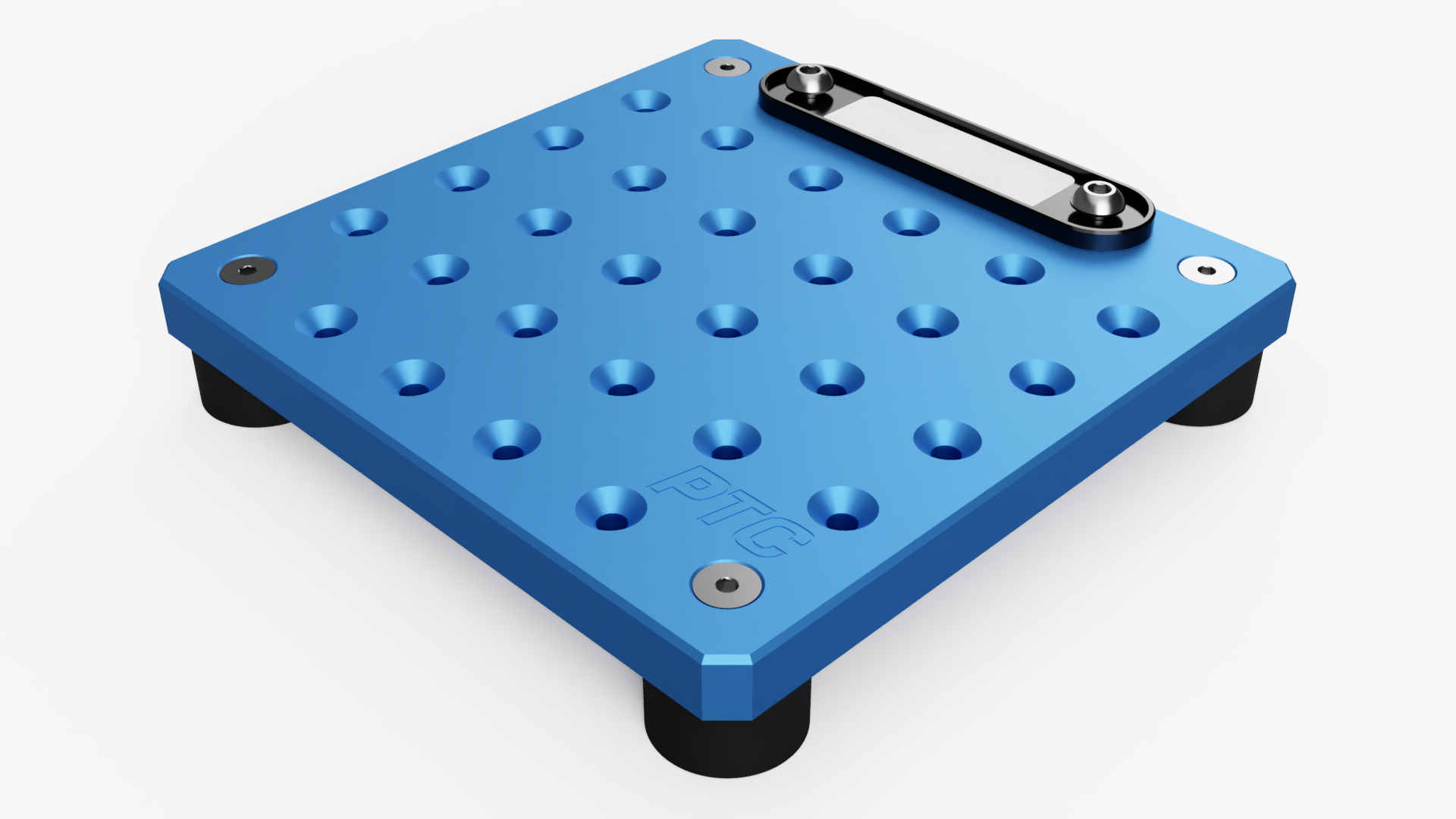

Our baseplates (or breadboards) provide a platform to quickly build tooling and fixtures. Machined from solid 6061 T6 aluminum, they are designed to provide mounting versatility. All holes are tapped and countersunk, allowing components to be mounted on them or easily mounted to another fixture while maintaining a flat working surface.

• 6-hole by 6-hole baseplate on 25mm spacing
• M6 through holes for direct mounting of components on either side
• Countersunk top surface holes to match M5 fasteners, allowing mounting of components to underside and still have a flat top surface

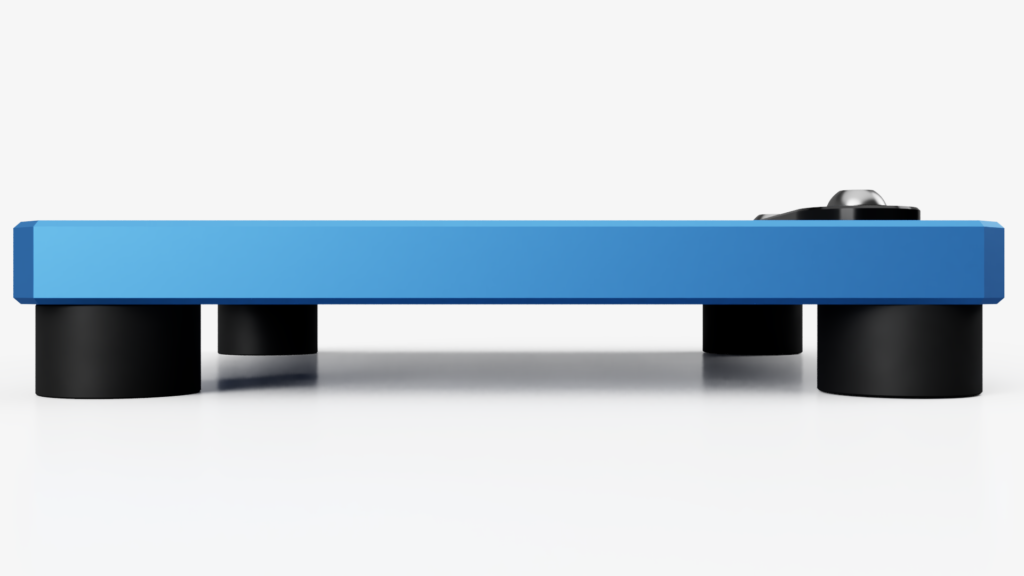

An asset tag and rubber feet are provided for when a baseplate is being used as the foundation of a fixture. They can easily be removed for when they are mounted to other components. The asset tag takes a standard label the user can insert.

PDF 2D Drawing Files:

PTC-100-BP-6-6 Drawing

PTC-100-BP-6-6 BOM Drawing

Autodesk Fusion 360 File:

PTC-100-BP-6-6

3D STEP File:

PTC-100-BP-6-6

Solidworks 2017 File:

PTC-100-BP-6-6
