ANGLE SUPPORT, 100 SERIES, SIZE: 4x4

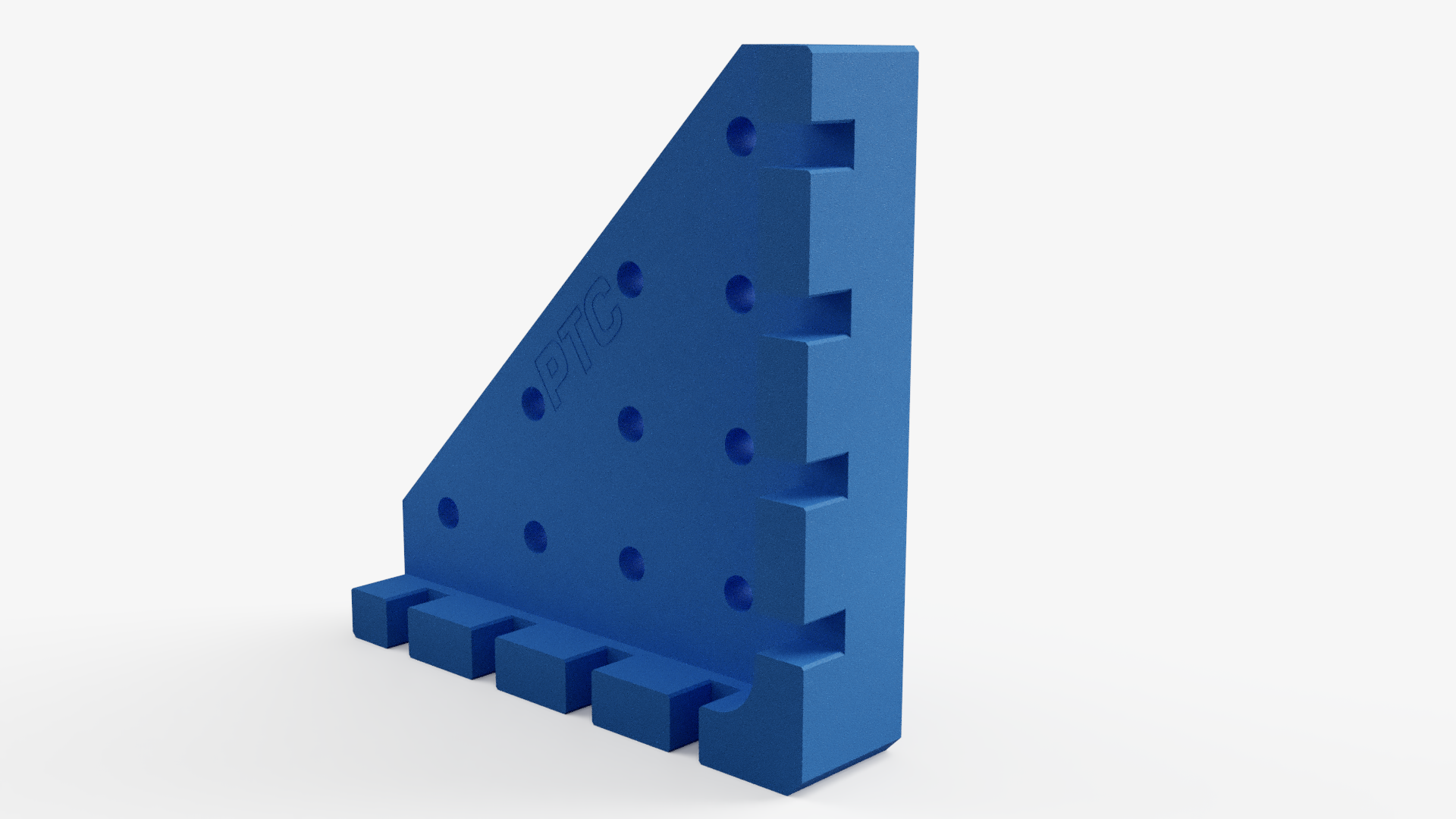

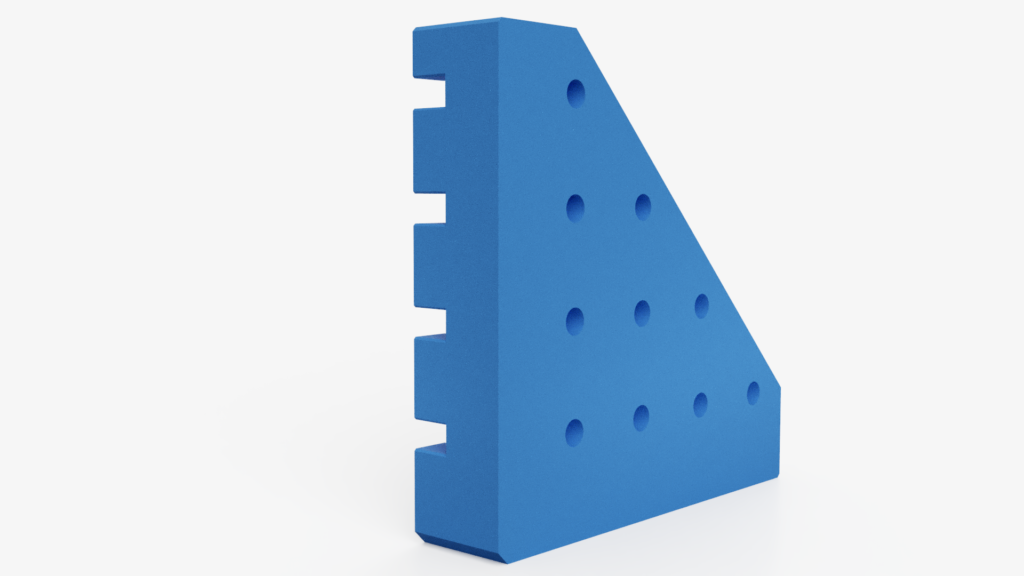

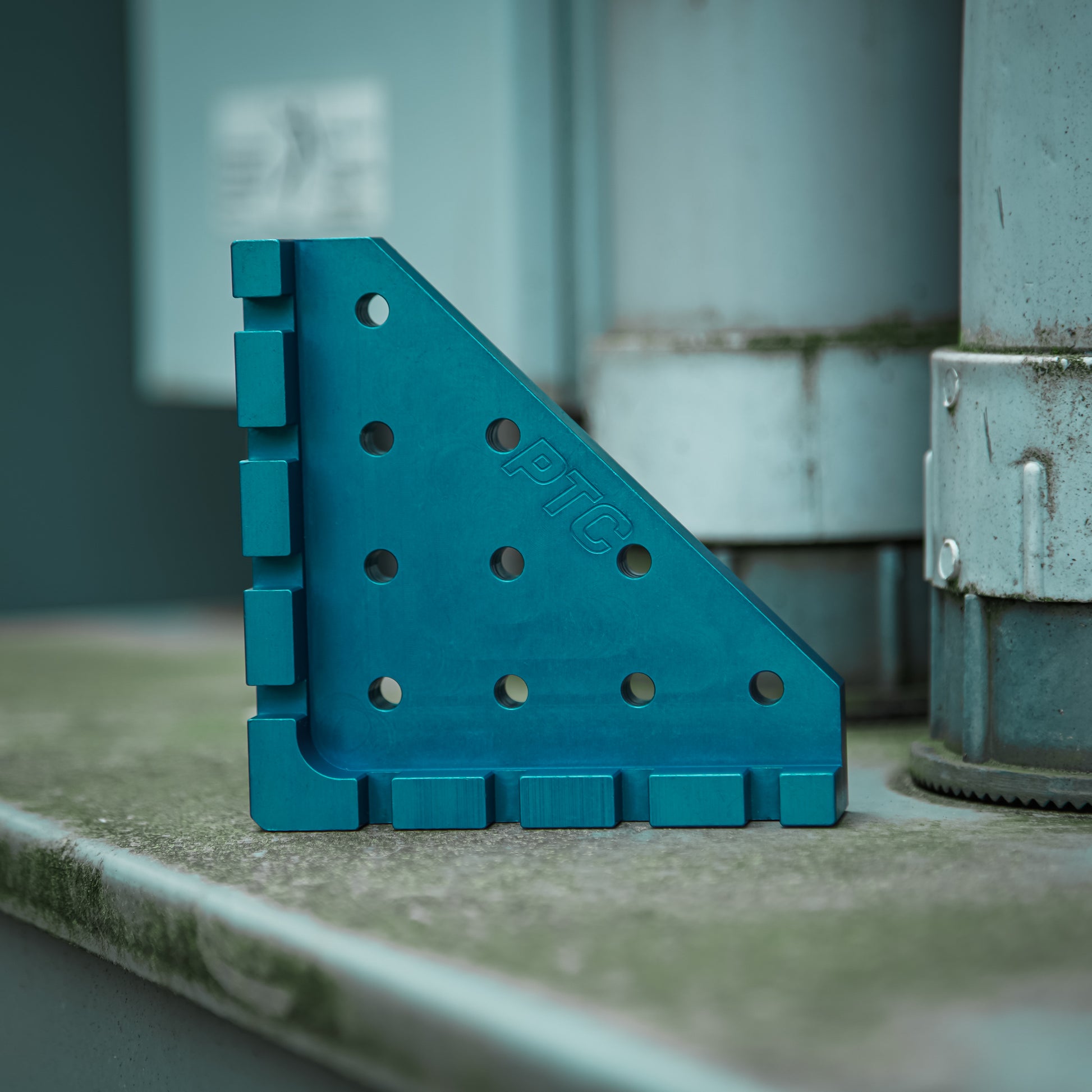

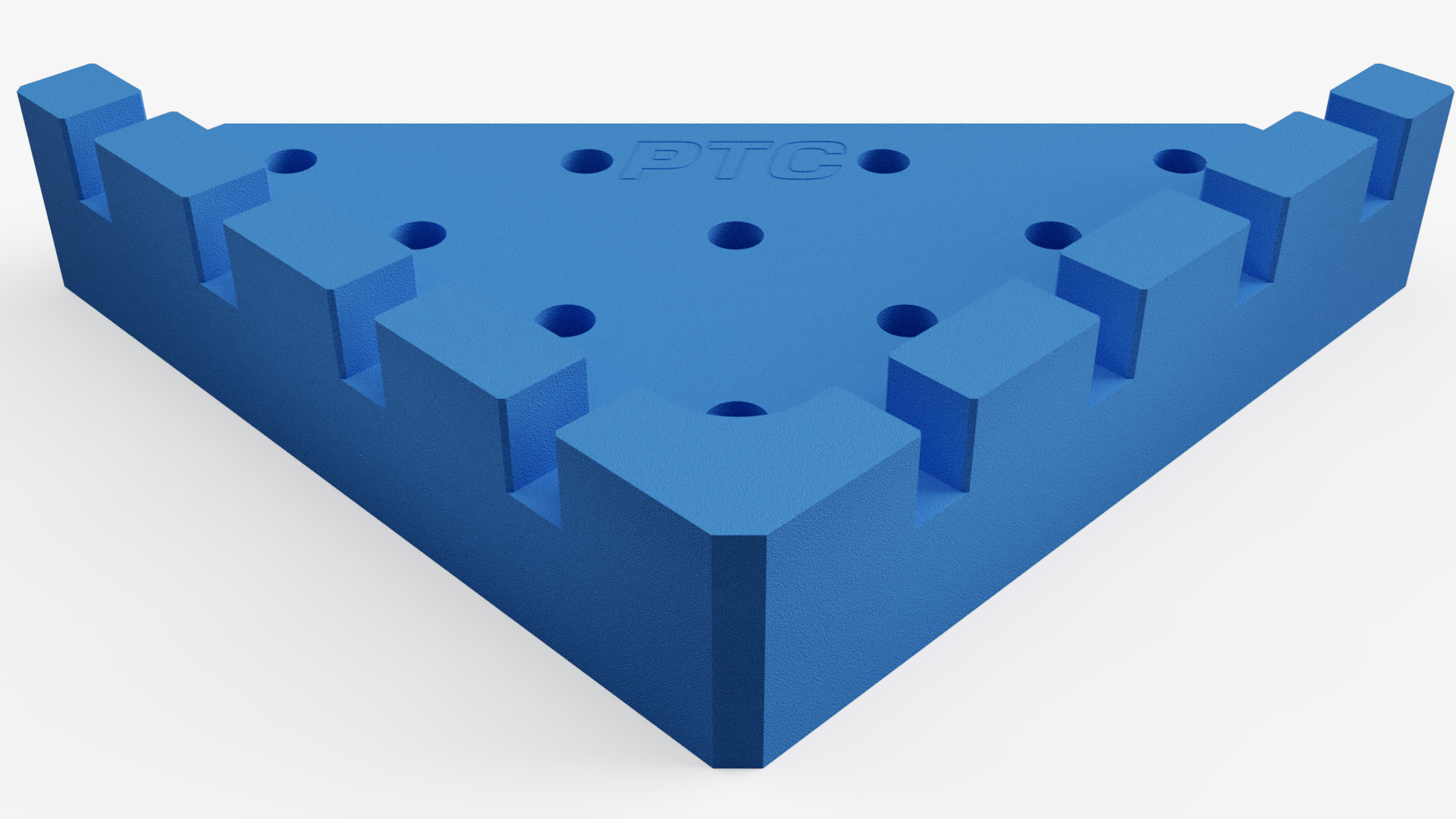

Our right-angle support can be used to increase the rigidity of a fixture and allow components to be mounted vertically. They have slots to fit an M6 fastener and washer, making them compatible with any of our baseplates or clamps. We use them to create tools that have components mounted on a plane at right angles to the main fixture, as well as adding rigidity to other parts like the press tool.

• 1 row, 4 slot by 4 slot right angle support on 25mm spacing
• Clearance holes for M6 fasteners in the web on 25mm spacing
• Machined from 6061T6 aluminum and anodized with a Type II finish

PDF 2D Drawing File:

PTC-100-A-4-4

Autodesk Fusion 360 File:

PTC-100-A-4-4

3D STEP File:

PTC-100-A-4-4

Solidworks 2017 File:

PTC-100-A-4-4
