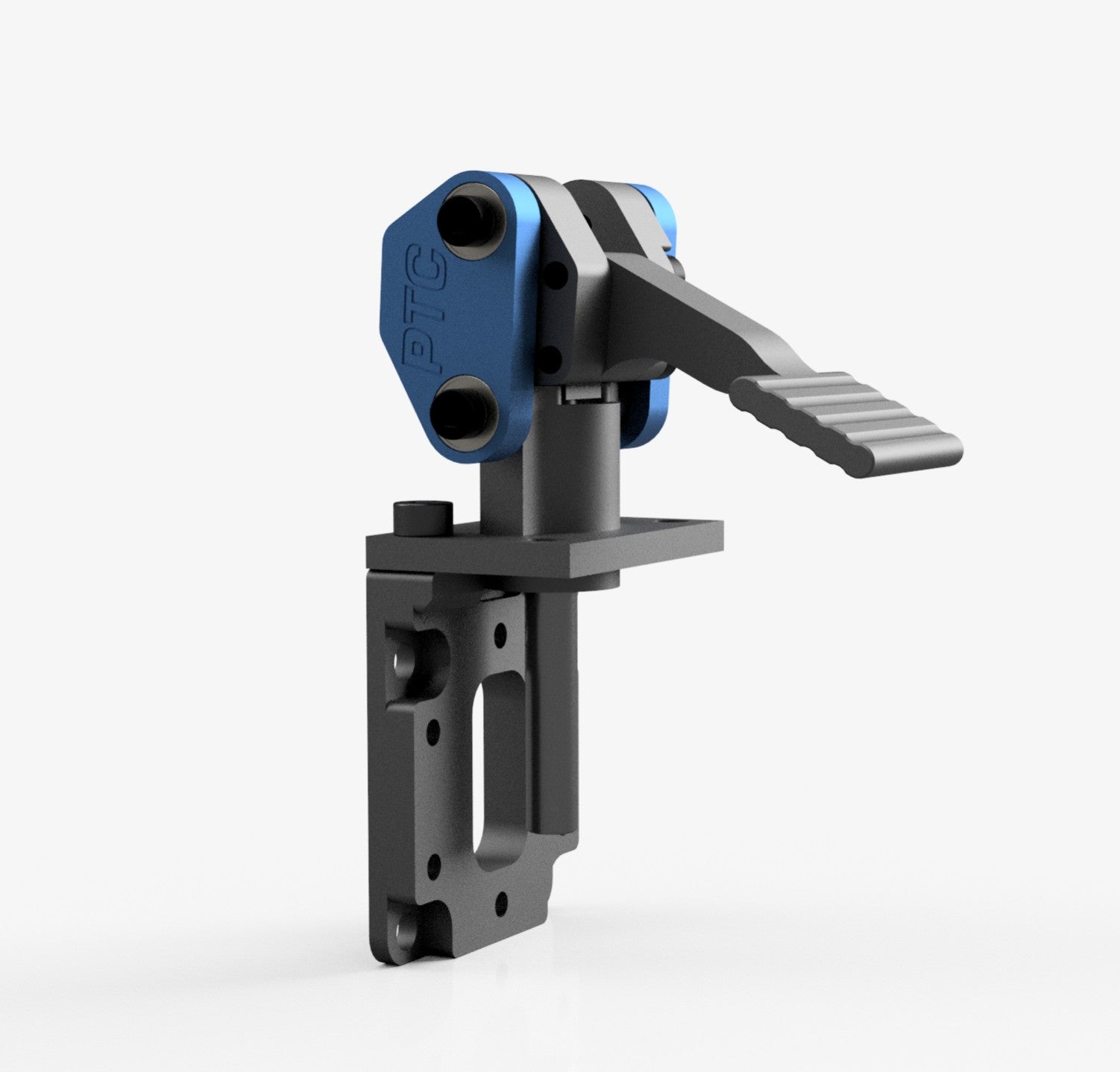

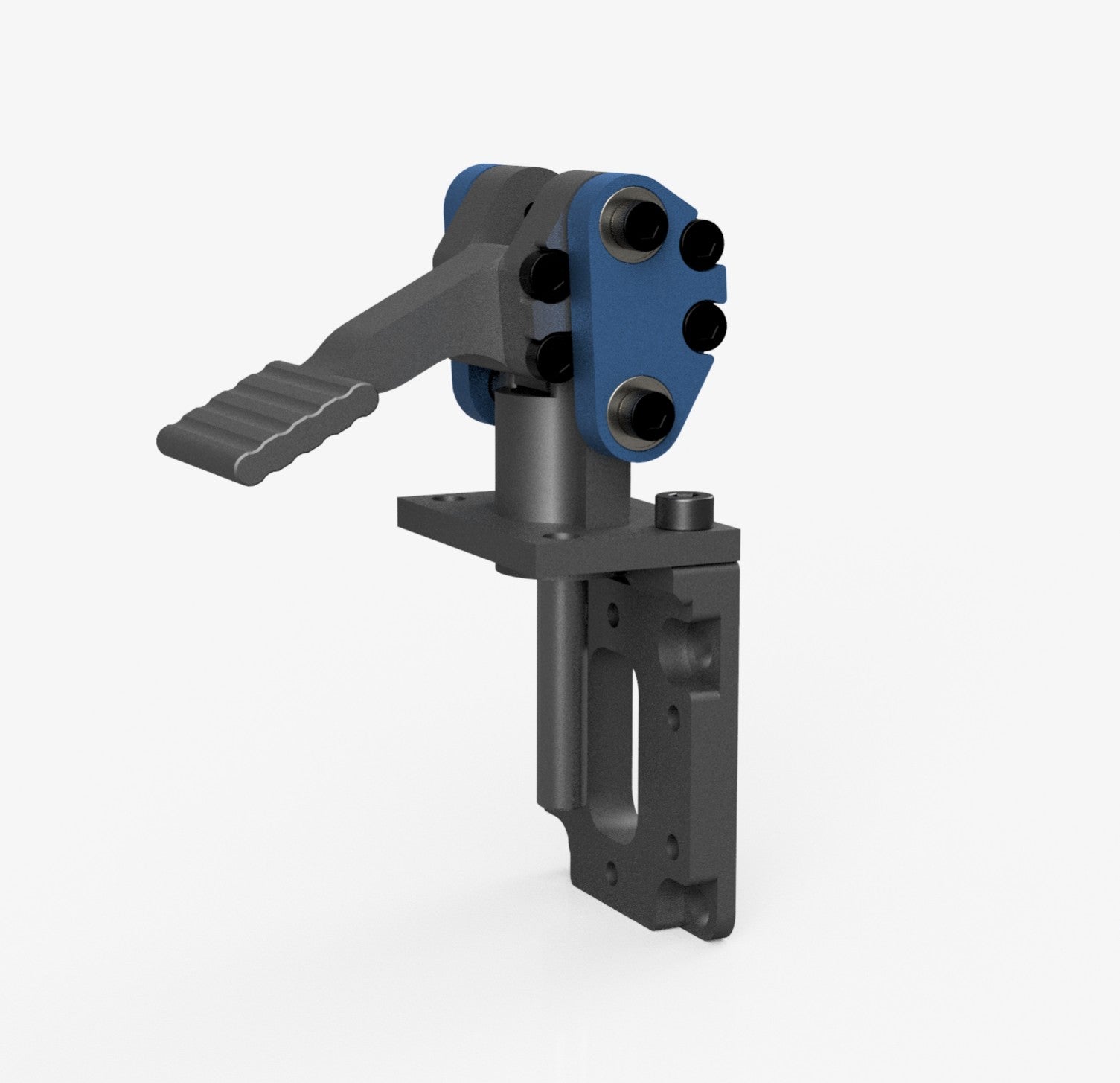

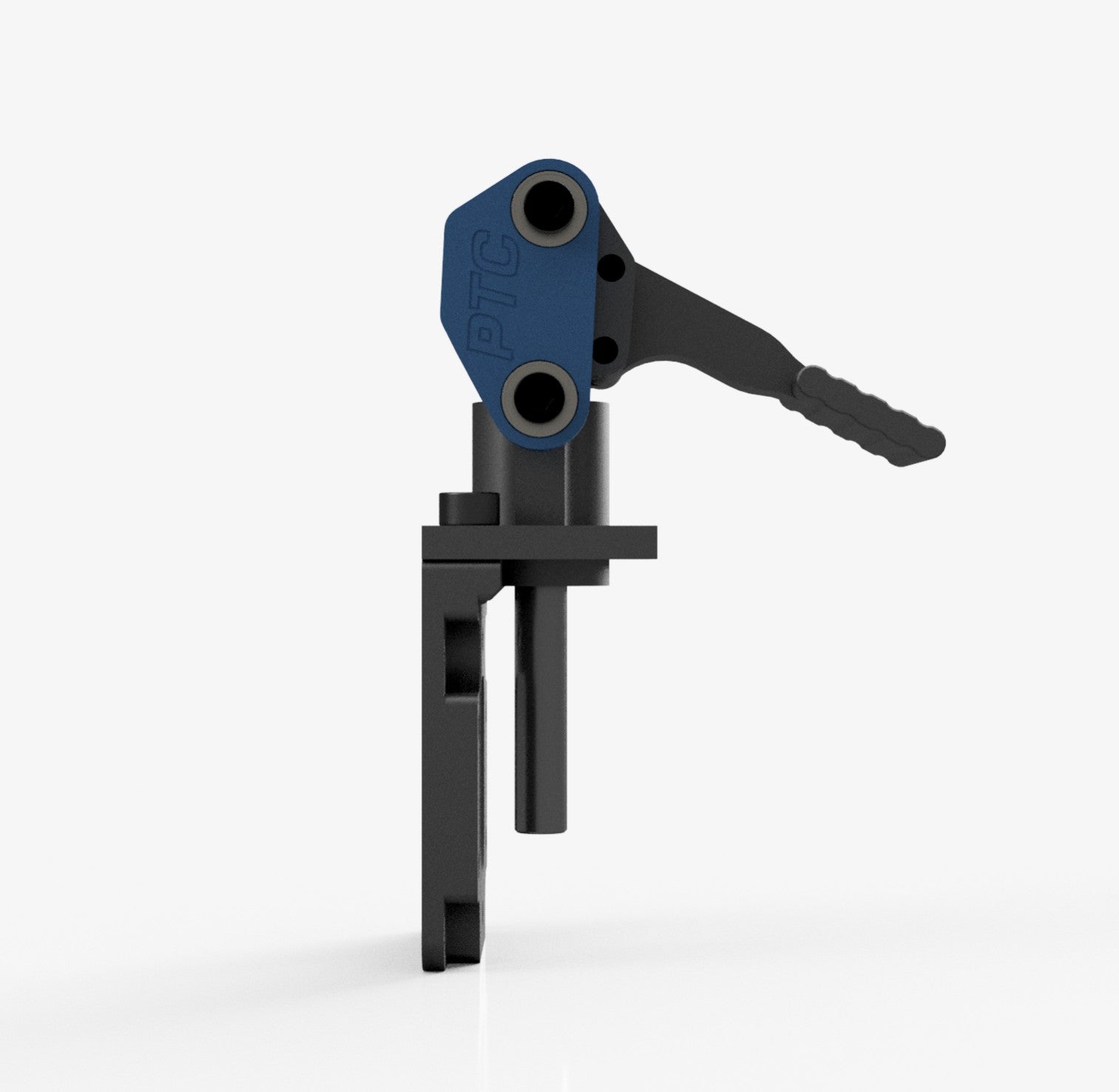

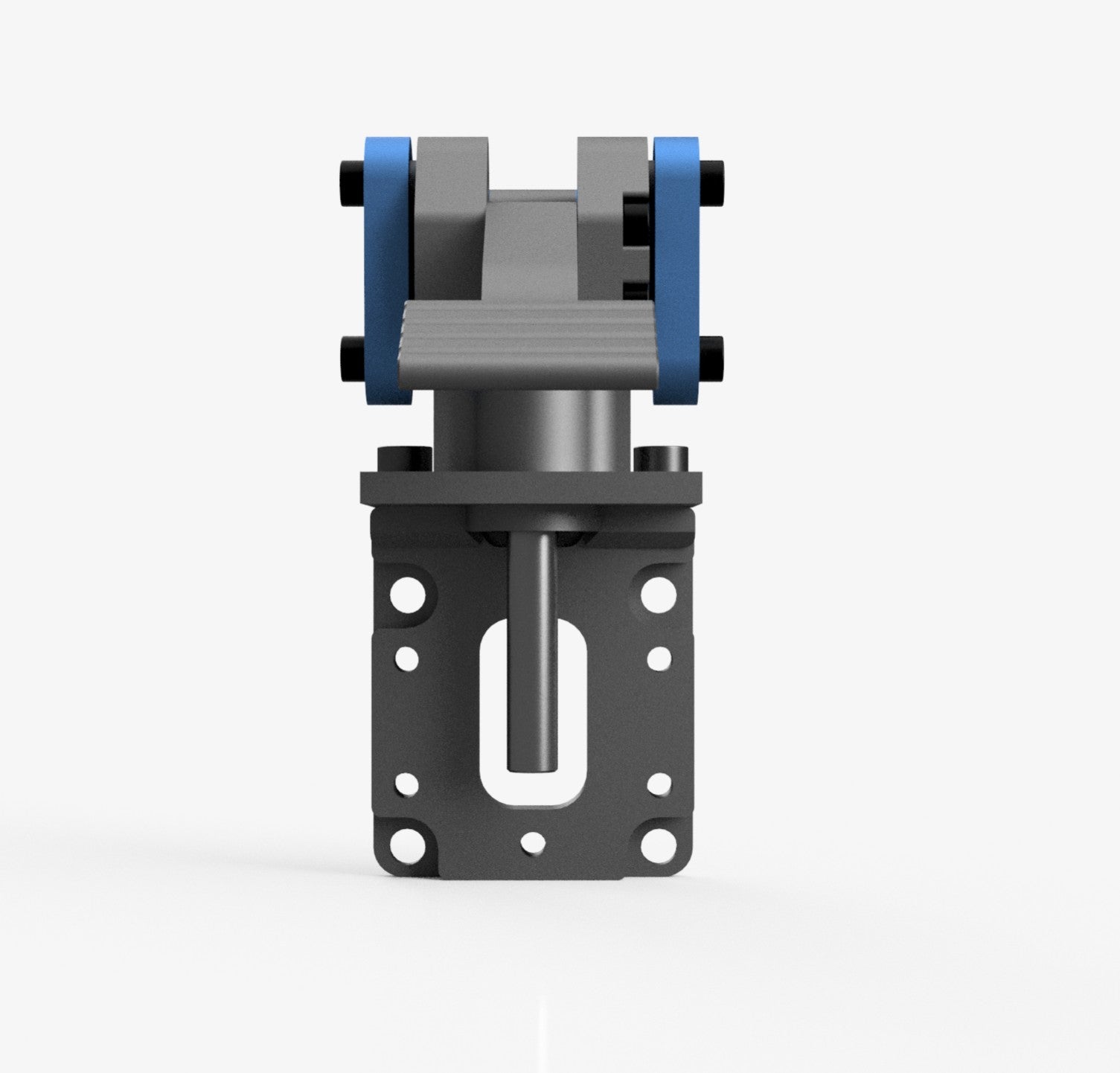

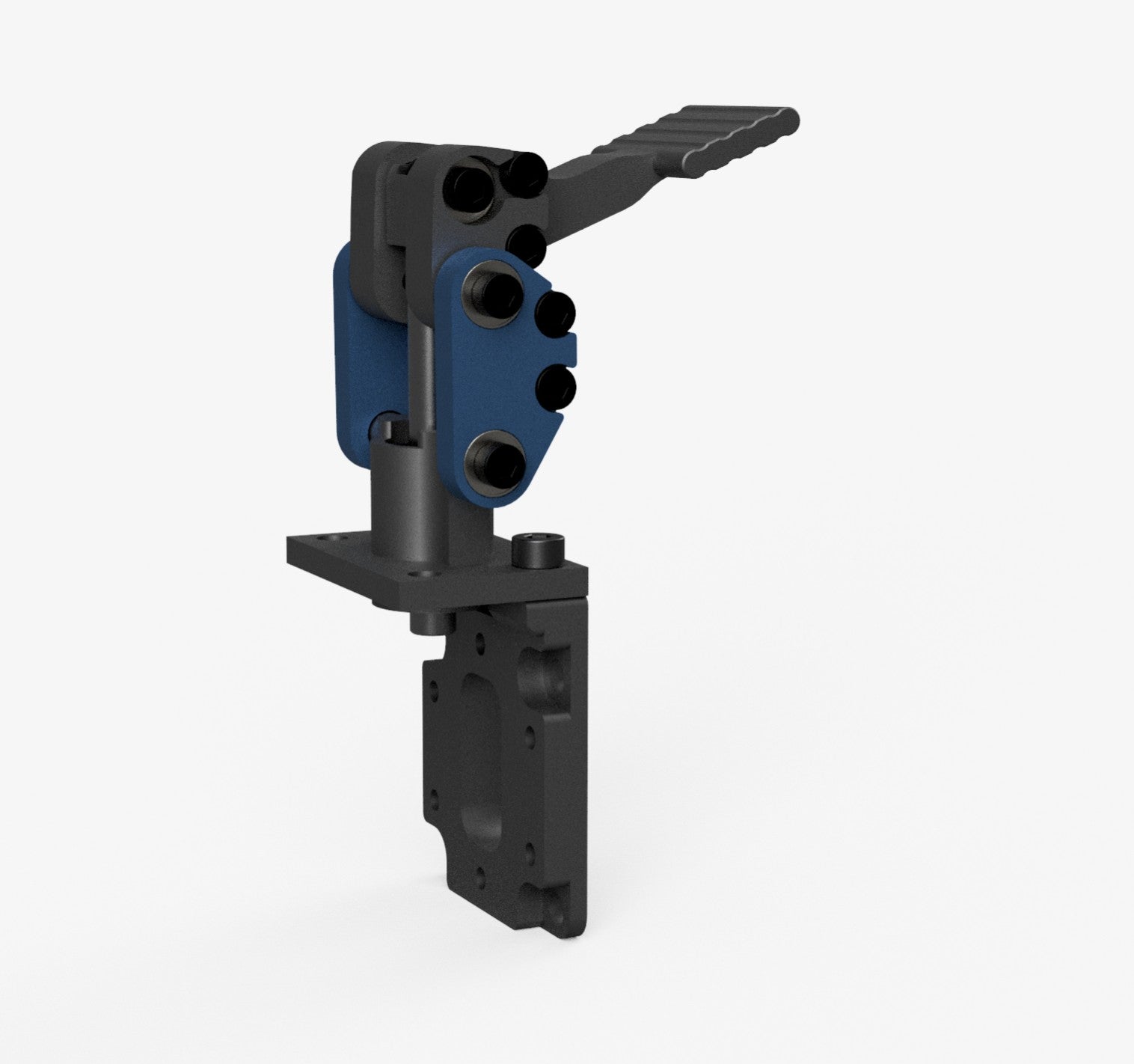

250 SIZE, 03100 SERIES, STRAIGHT-LINE

250 SIZE, 03100 SERIES, STRAIGHT-LINE

Regular price $265.00 USD
Regular price Sale price $265.00 USD
Sale Sold out

Our micro 250 size precision toggle clamp is approximately half the size of our 300 series and offers the same smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

3100 series clamps provide over-center/ toggle clamping in the push and pull directions, and mount using a flange parallel and alongside to the clamping direction. This clamp can also be reconfigured to a 3000 series with no additional parts.

Max Force @ XXN (XXlb/ft on handle) XXN (XX lb/ft)
Stroke 20mm (0.79 in)
Mounting Screws M3 or #4
Mounting Screw Pitch 25mm or 1 inch Pitch Grid
Locking Direction Push and Pull
Spindle 5mm Precision Ground
Spindle Thread M3



PDF 2D Drawing Files:

TBA

TBA

Autodesk Fusion 360 File:

PTC-250-03100

3D STEP Files:

PTC-250-03100 Clamped

PTC-250-03100 Unclamped

Solidworks 2017 File:

TBA
