300 SIZE, 02000 SERIES, HOLD-DOWN
300 SIZE, 02000 SERIES, HOLD-DOWN
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
/
per
Couldn't load pickup availability

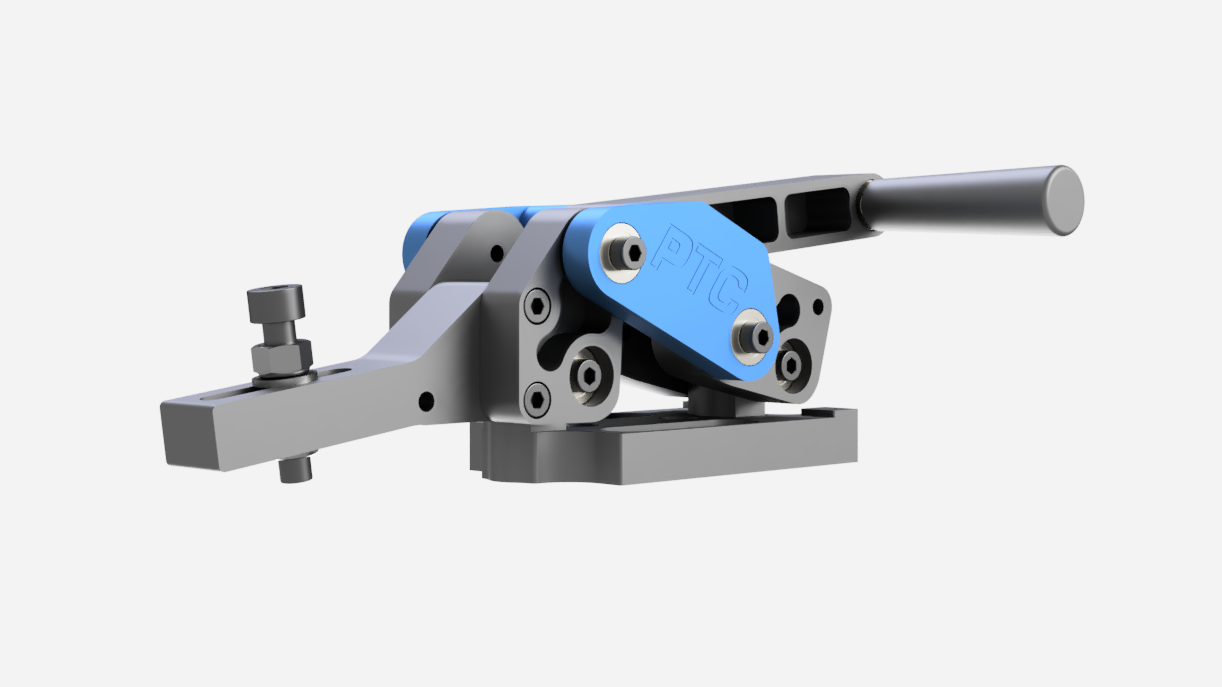

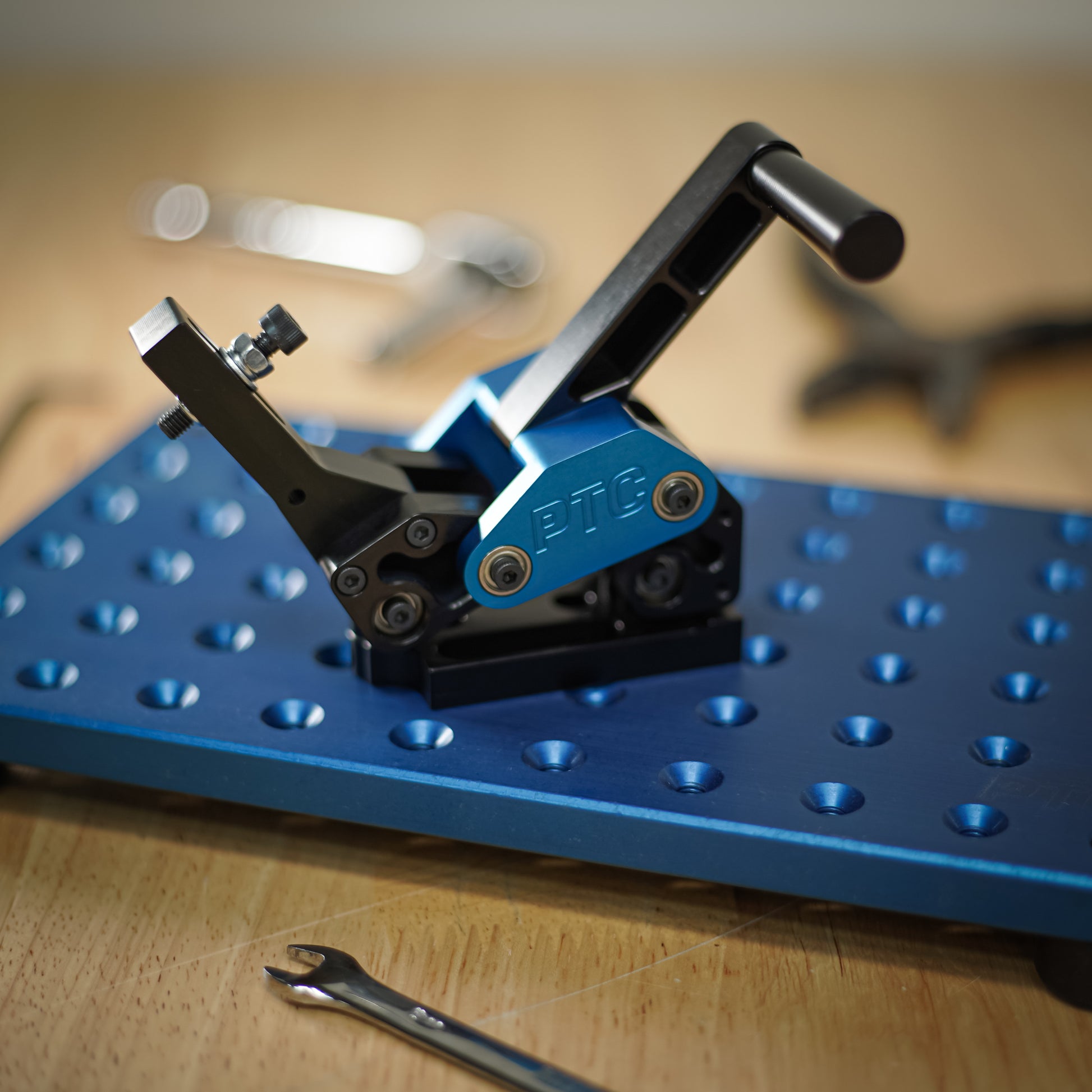

Our small and compact 300 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

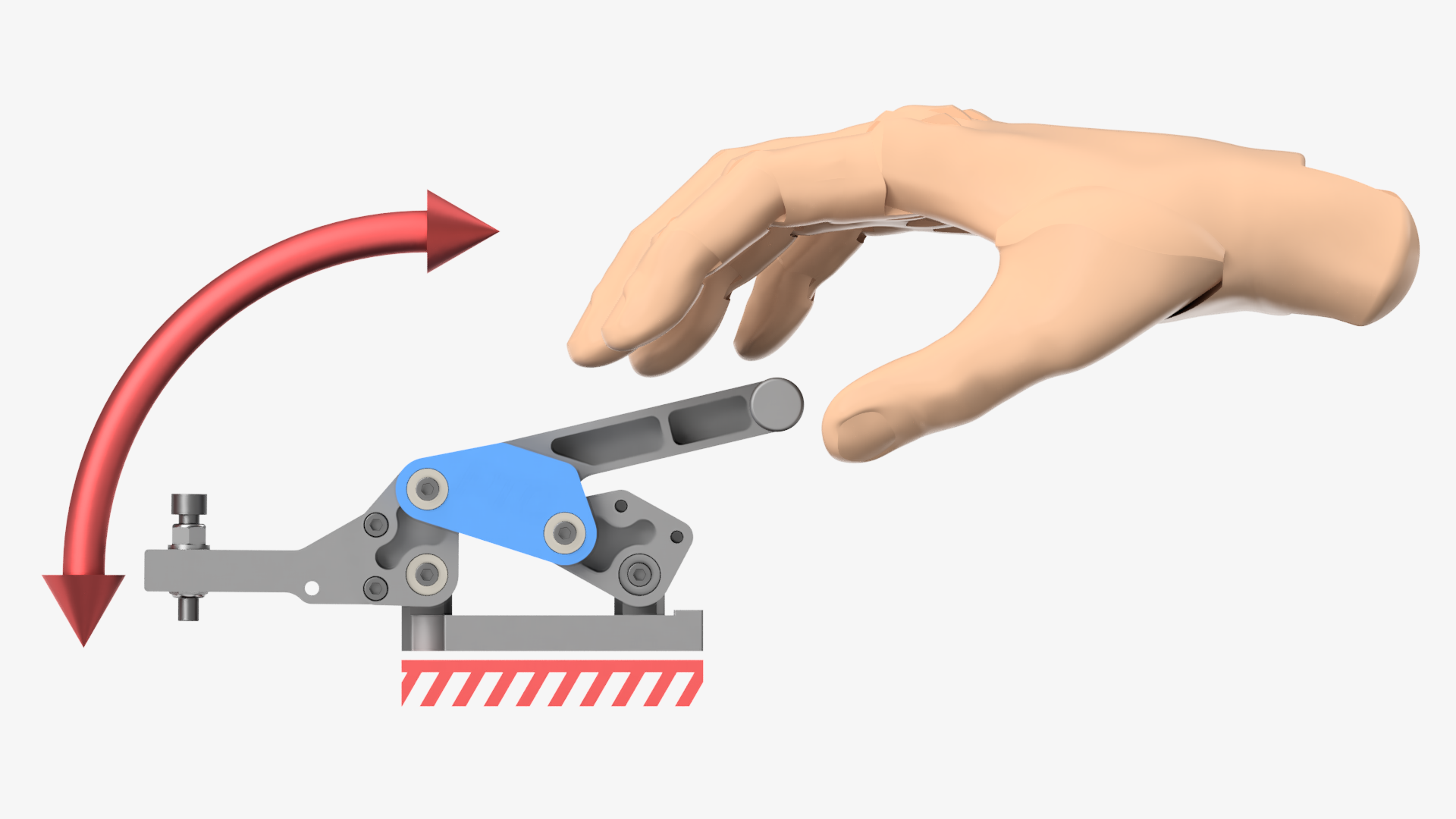

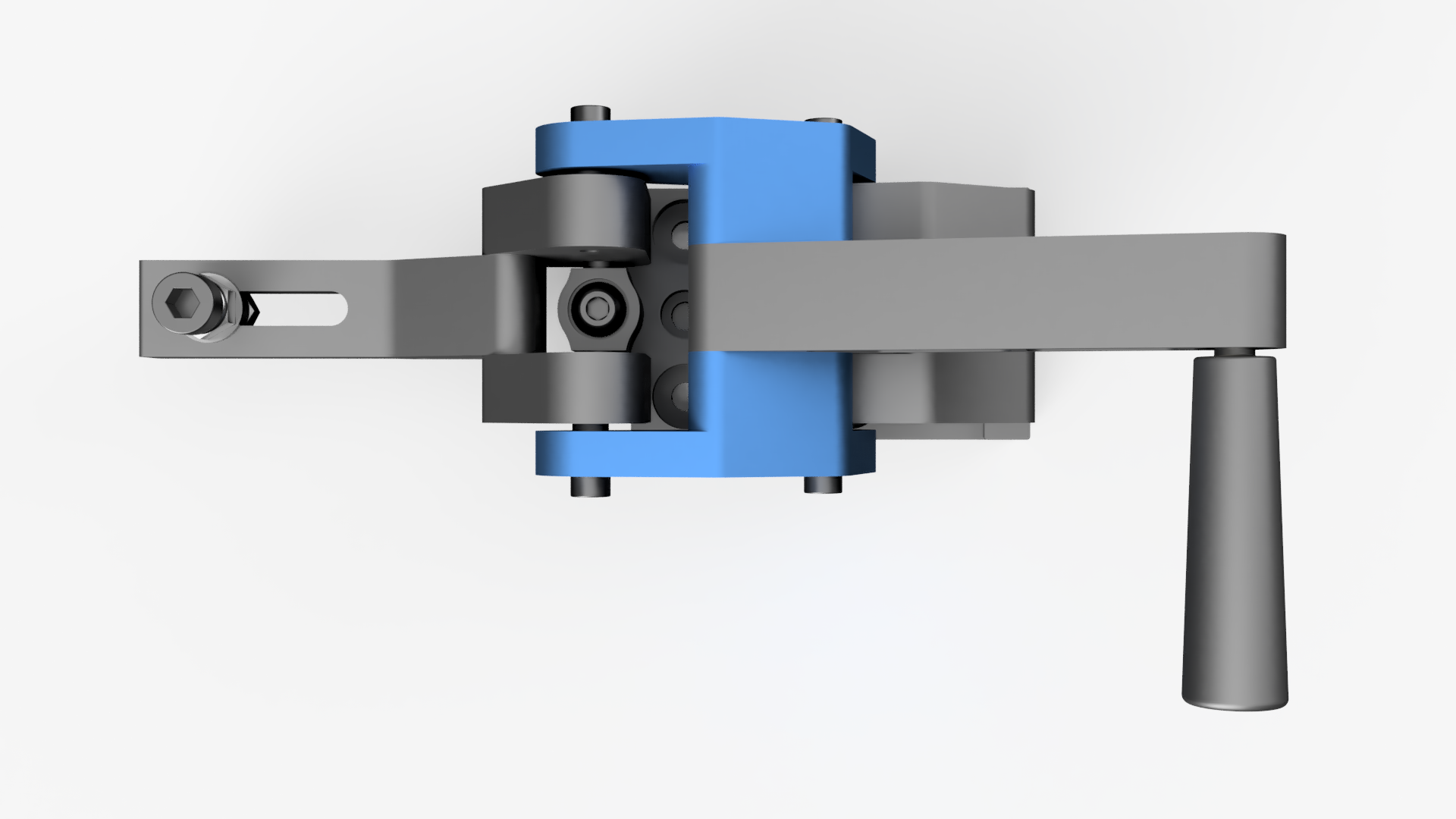

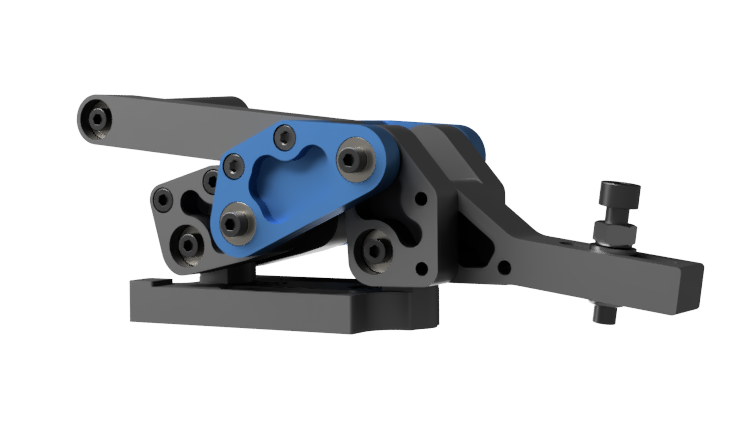

2000 series clamps provide hold-down clamping and mount using a base flange. There is no lock in the retract direction. For ultra-low-profile use, the base can be removed, and the clamp components mounted directly to a base plate with two screws. This clamp can also be reconfigured as a 2100 series with no additional parts.
Max Clamp Force @ 45N (10lb/ft on handle) | 182N (41lb/ft) |
Stroke | 87.5 Deg |
Mounting Screws | M4 or #8 |
Mounting Screw Pitch | 25mm or 1in Pitch Grid |
Locking Direction | Push Only |
Clamp Pad | M5 SHCS |
PDF 2D Drawing Files:
PTC-300-02000 Clamp Hold Down Drawing v5
PTC-300-02000 Clamp Hold Down BOM Drawing
Autodesk Fusion 360 File:
3D STEP Files:
Solidworks 2023 File:
