300 SIZE, 02100 SERIES, HOLD-DOWN
300 SIZE, 02100 SERIES, HOLD-DOWN
Couldn't load pickup availability

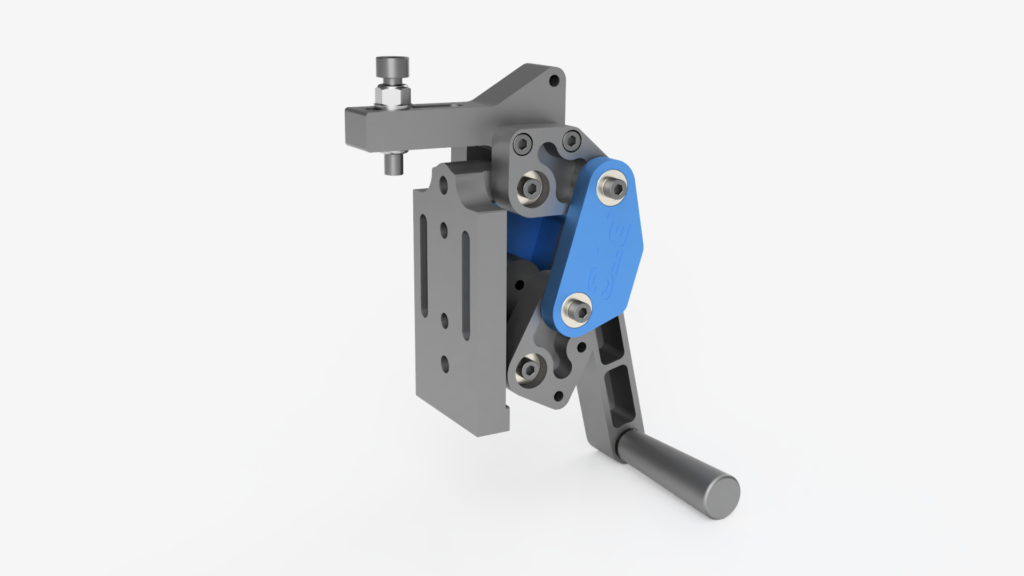

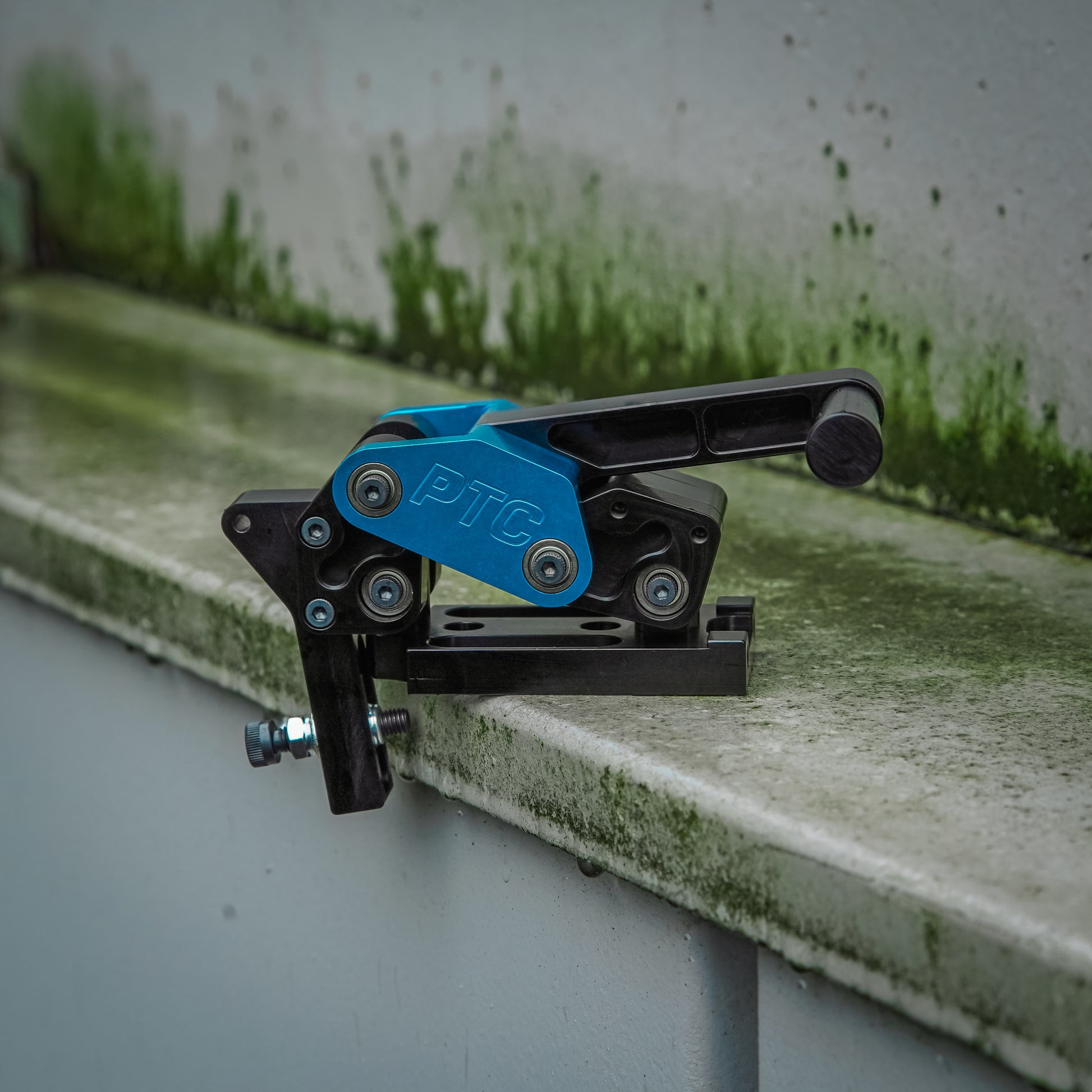

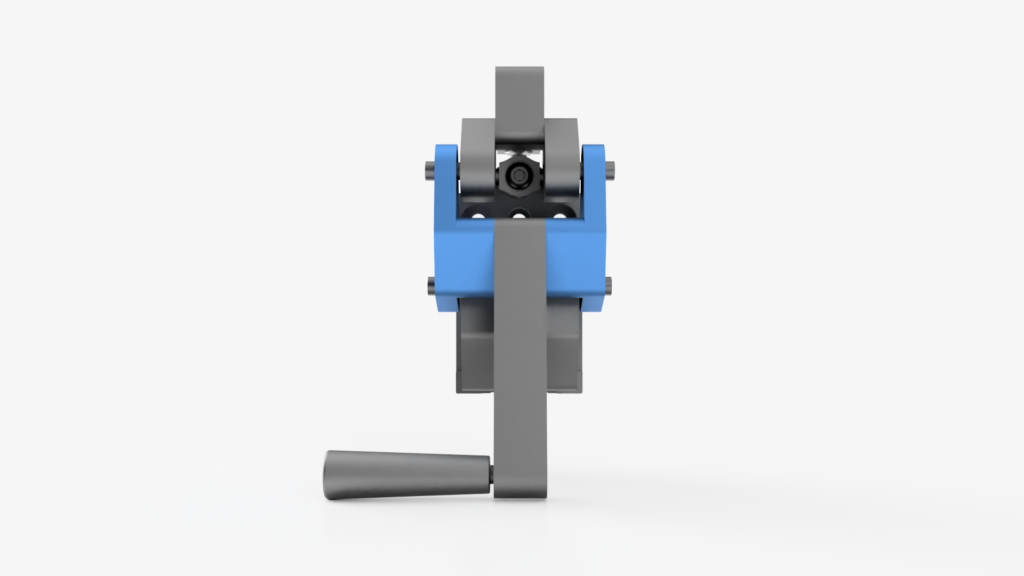

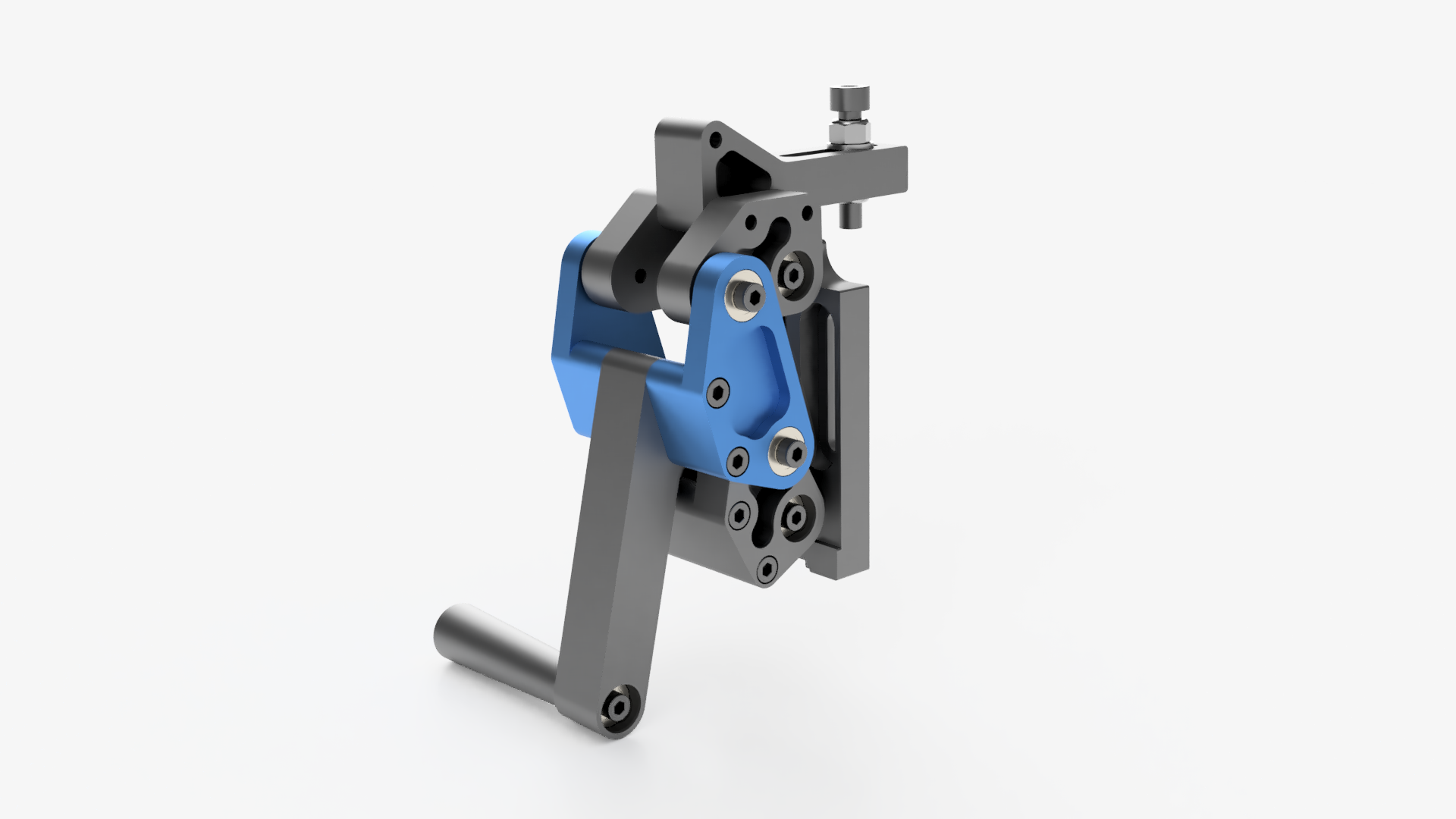

Our small and compact 300 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

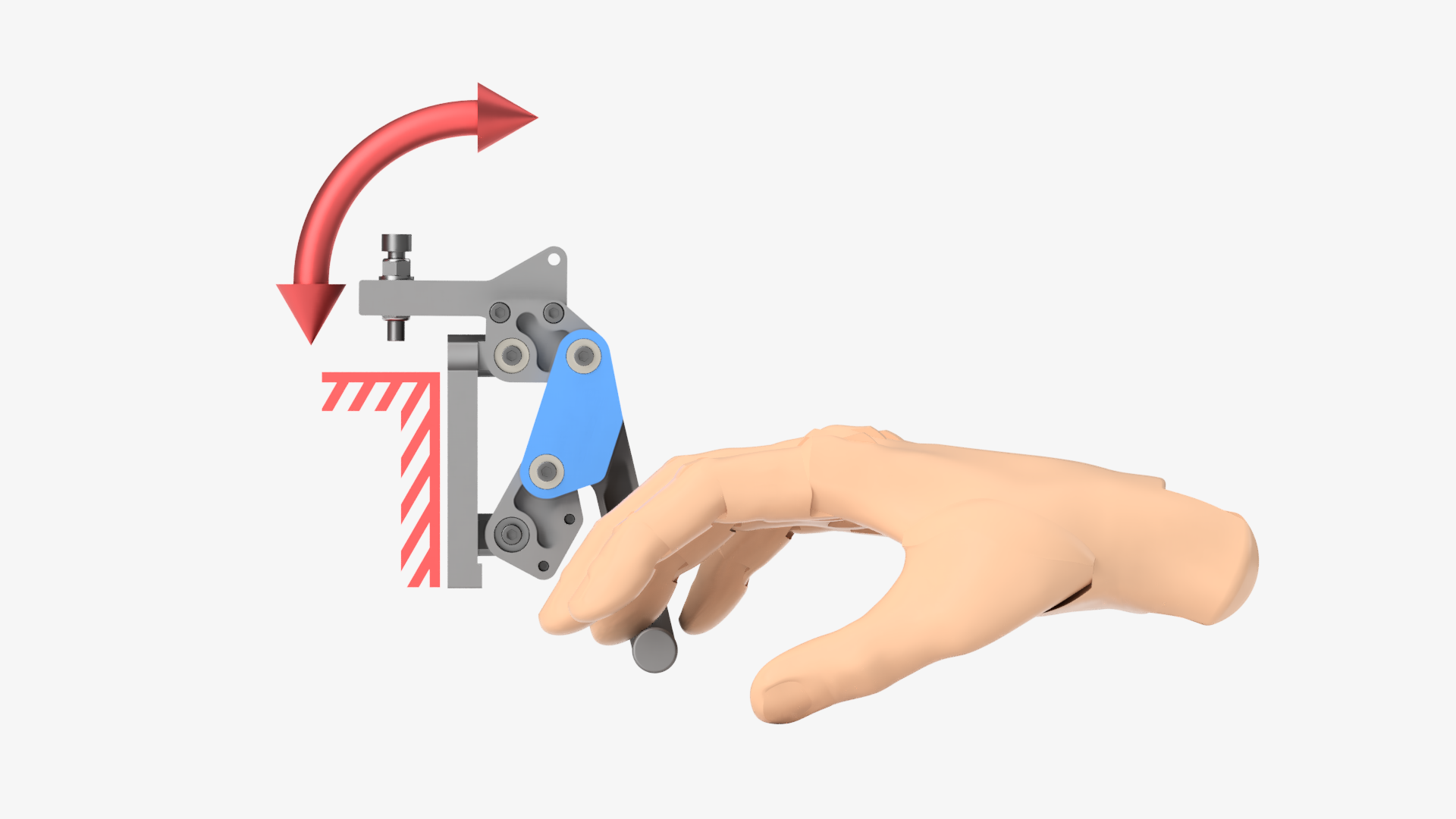

2100 series clamps provide hold-down clamping and mounts to a face parallel to the clamping direction. There is no lock in the retract direction. For ultra-low profile use the base can be removed and the clamp components mounted directly to a base plate with two screws. This clamp can also be reconfigured as a 2000 series with no additional parts.
| Max Clamp Force @ 45N (10lb/ft on handle) | 245N (55lb/ft) |
| Stroke | 95 Deg |
| Mounting Screws | M4 or #8 |
| Mounting Screw Pitch | 25mm or 1 inch Pitch Grid |
| Locking Direction | Push Only |
| Clamp Pad | M5 SHCS |
PDF 2D Drawing Files:
PTC-300-02100 Clamp Hold-Down Drawing v7
PTC-300-02100 Clamp Hold-Down BOM Drawing v1
Autodesk Fusion 360 File:
3D STEP File:
Solidworks 2017 File:
