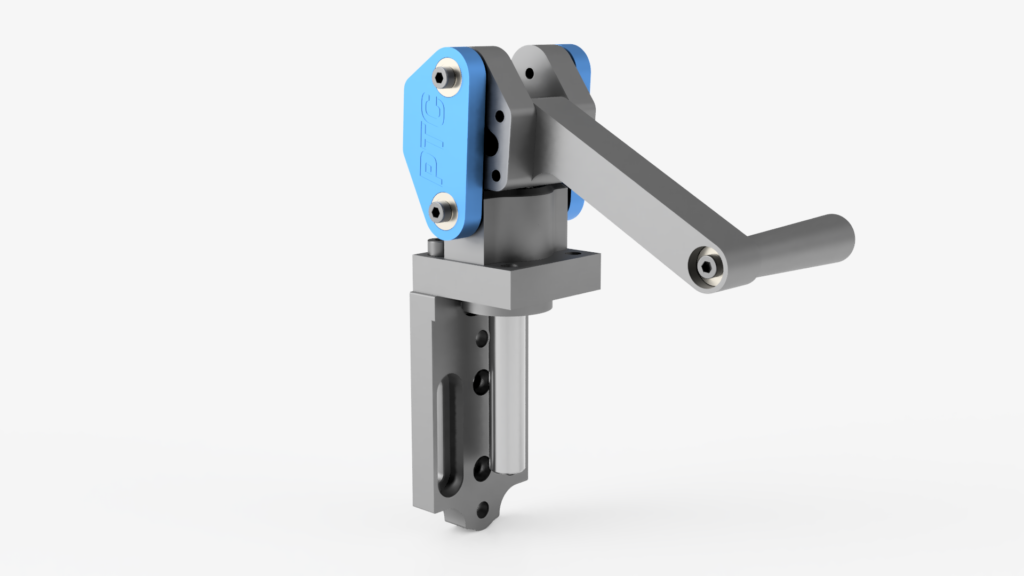

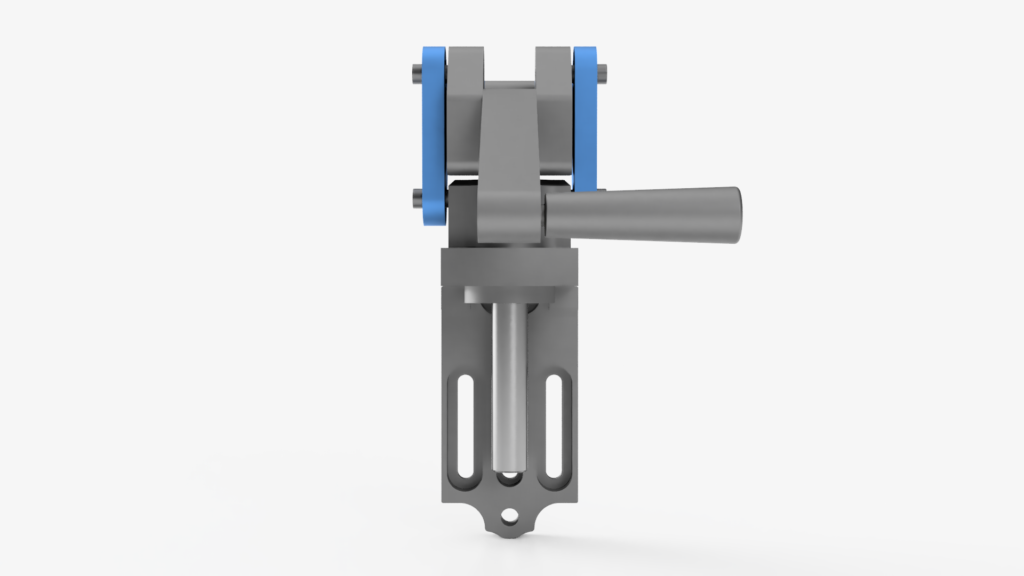

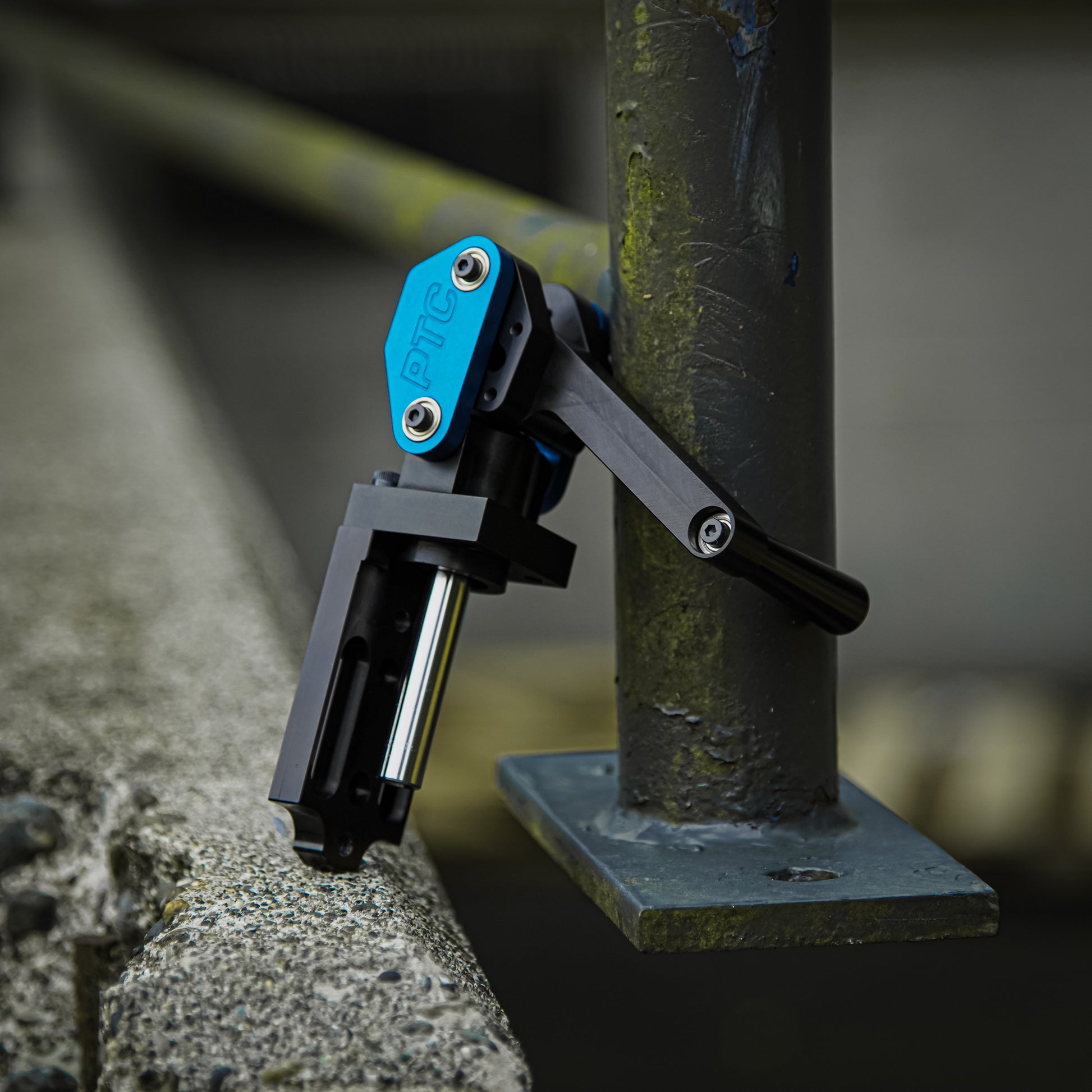

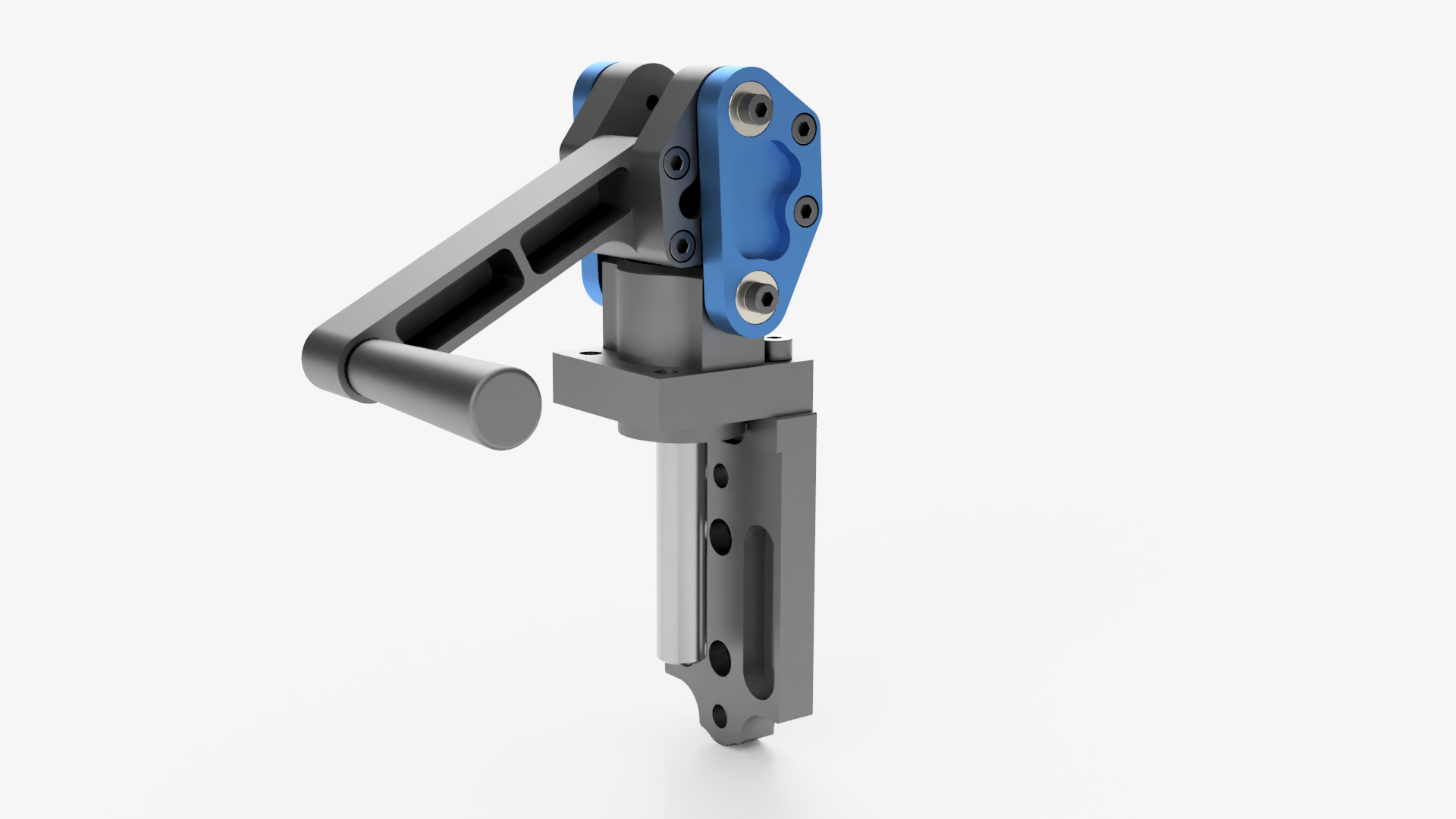

300 SIZE, 03100 SERIES, STRAIGHT-LINE

300 SIZE, 03100 SERIES, STRAIGHT-LINE

Regular price $325.00 USD
Regular price Sale price $325.00 USD
Sale Sold out

Our small and compact 300 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

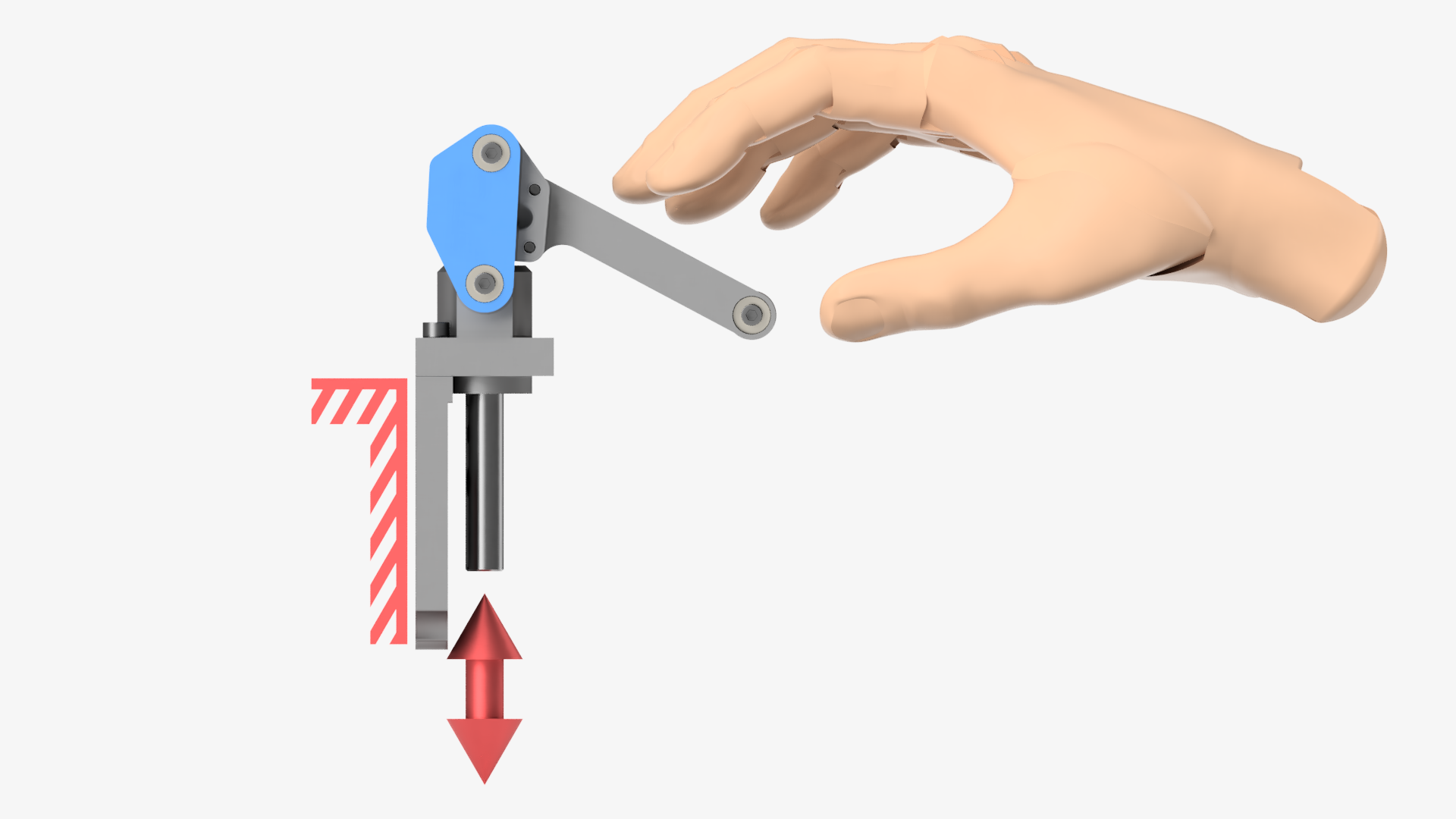

3100 series clamps provide over-center/ toggle clamping in the push and pull directions, and mount using a flange parallel and alongside to the clamping direction. This clamp can also be reconfigured to a 3000 series with no additional parts.

Max Force @ 45N (10lb/ft on handle) 979N (220 lb/ft)
Stroke 40mm (1.58 in)
Mounting Screws M4 or #8
Mounting Screw Pitch 25mm or 1 inch Pitch Grid
Locking Direction Push Only
Spindle 10mm Precision Ground
Spindle Thread M5

PDF 2D Drawing Files:

PTC-300-03100 Clamp Drawing v10

PTC-300-03100 Clamp BOM Drawing v1

Autodesk Fusion 360 File:

PTC-300-03100

3D STEP Files:

PTC-300-03100 Open

PTC-300-03100 Closed

Solidworks 2017 File:

PTC-300-03100
