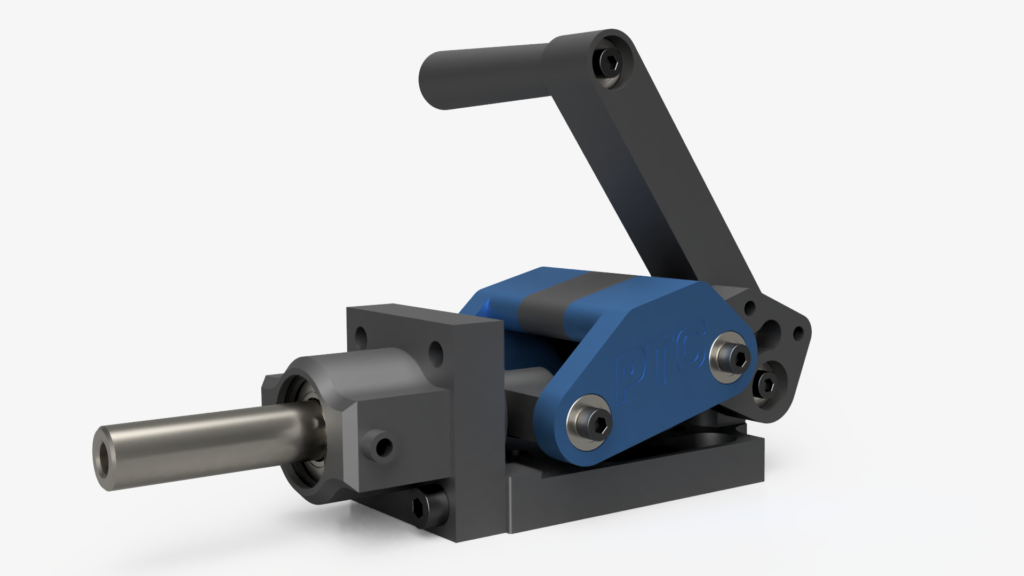

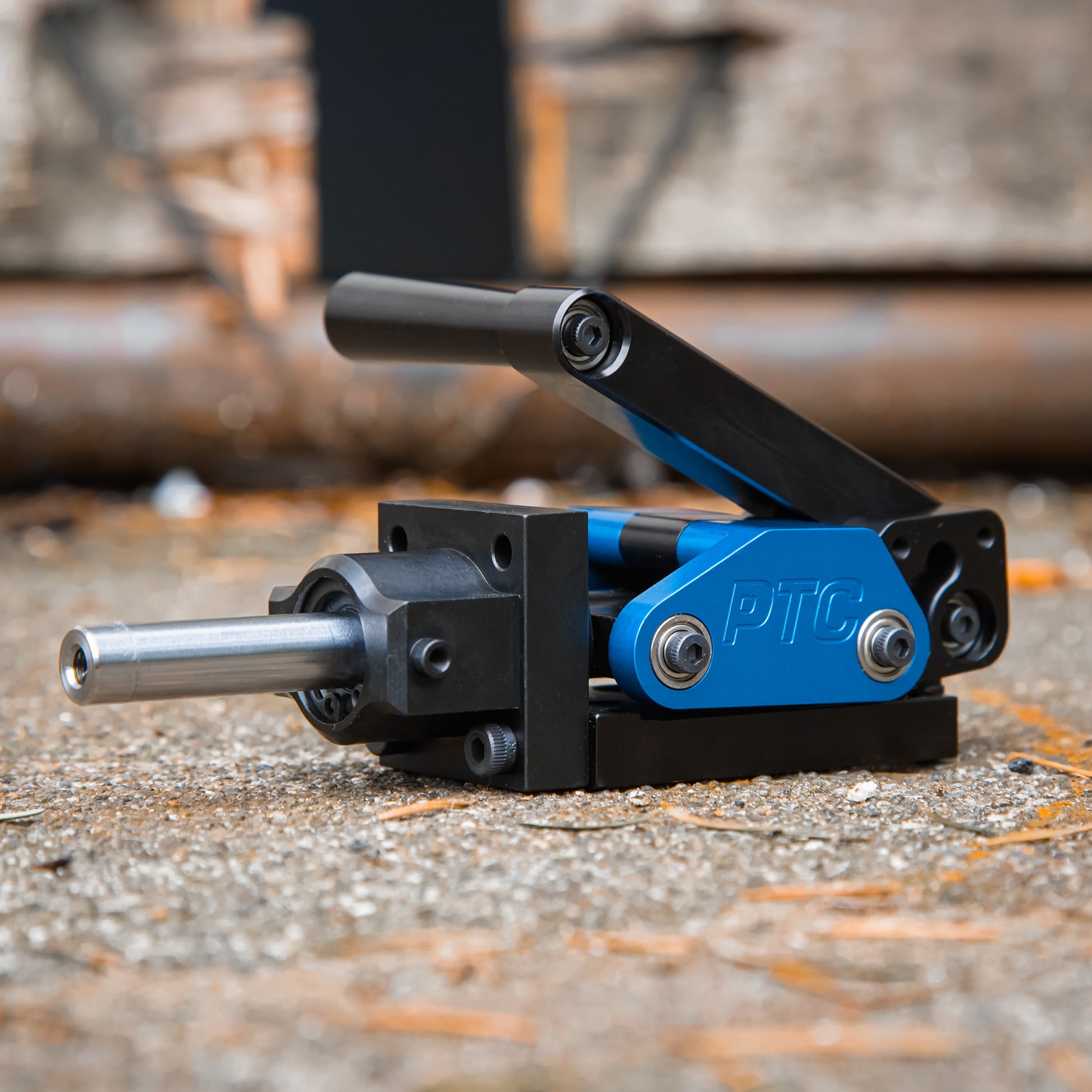

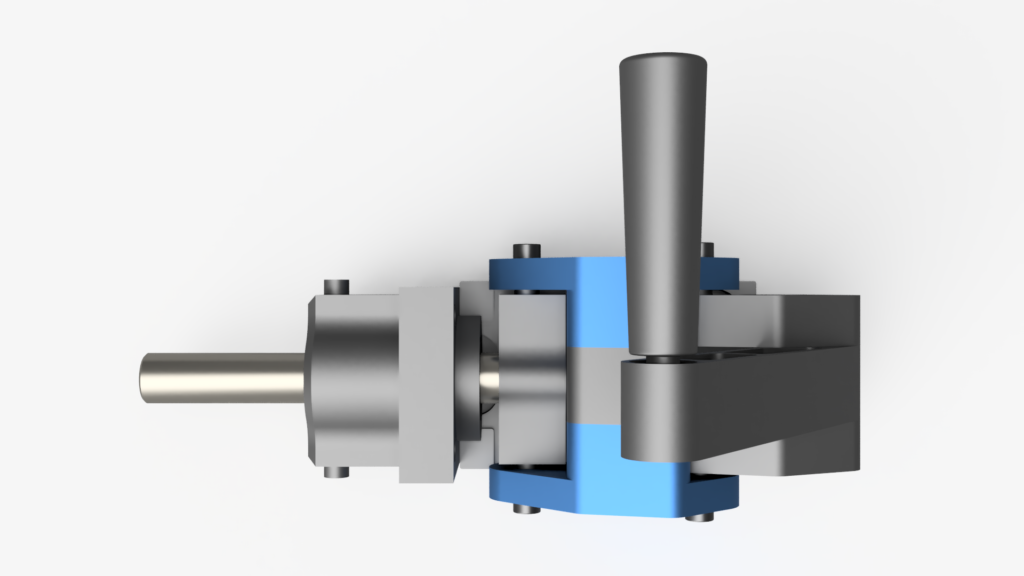

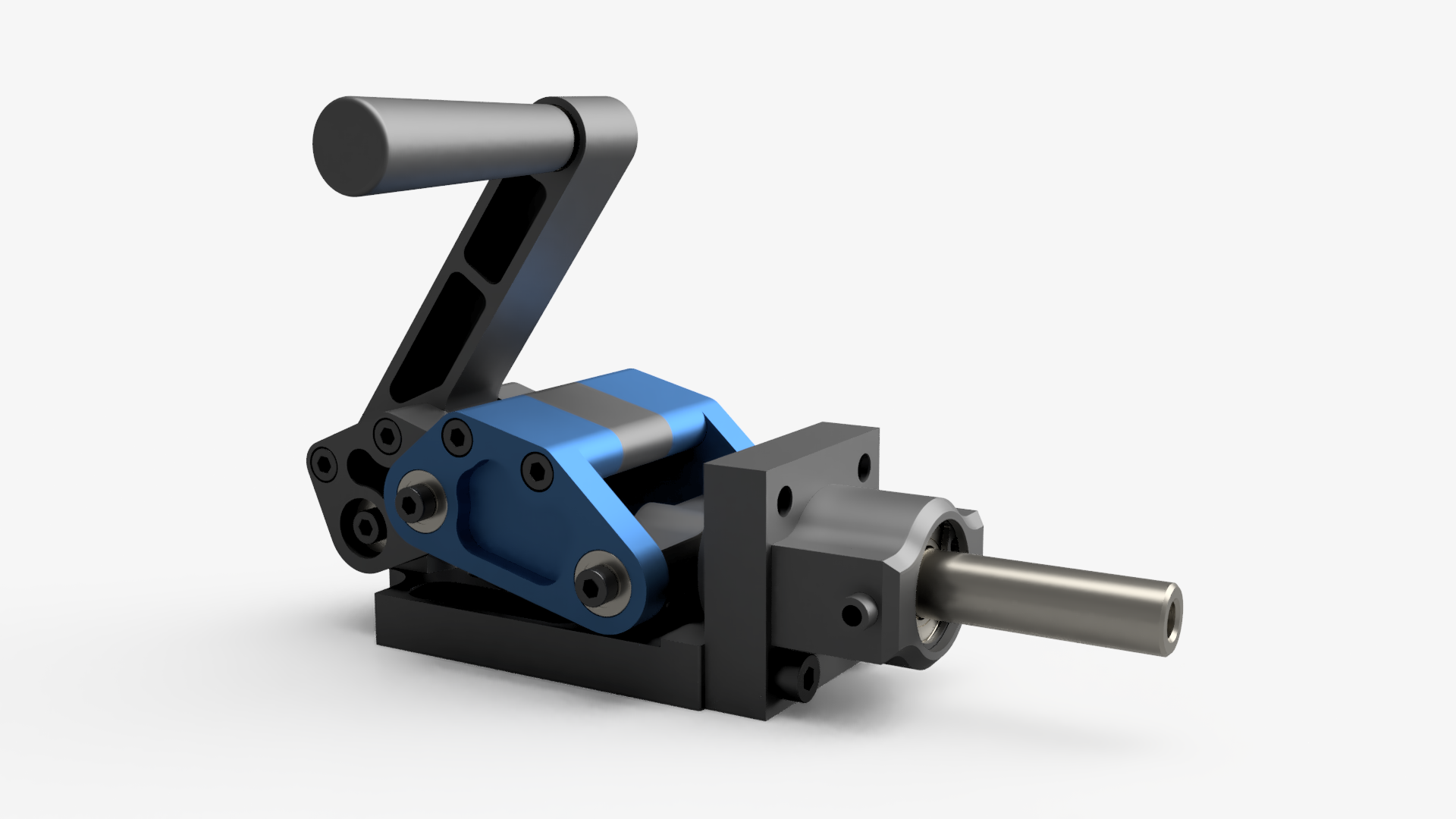

300 SIZE, 01000 SERIES, STRAIGHT-LINE
300 SIZE, 01000 SERIES, STRAIGHT-LINE
Regular price
$320.00 USD
Regular price
Sale price
$320.00 USD
Unit price
/
per
Couldn't load pickup availability
Our small and compact 300 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

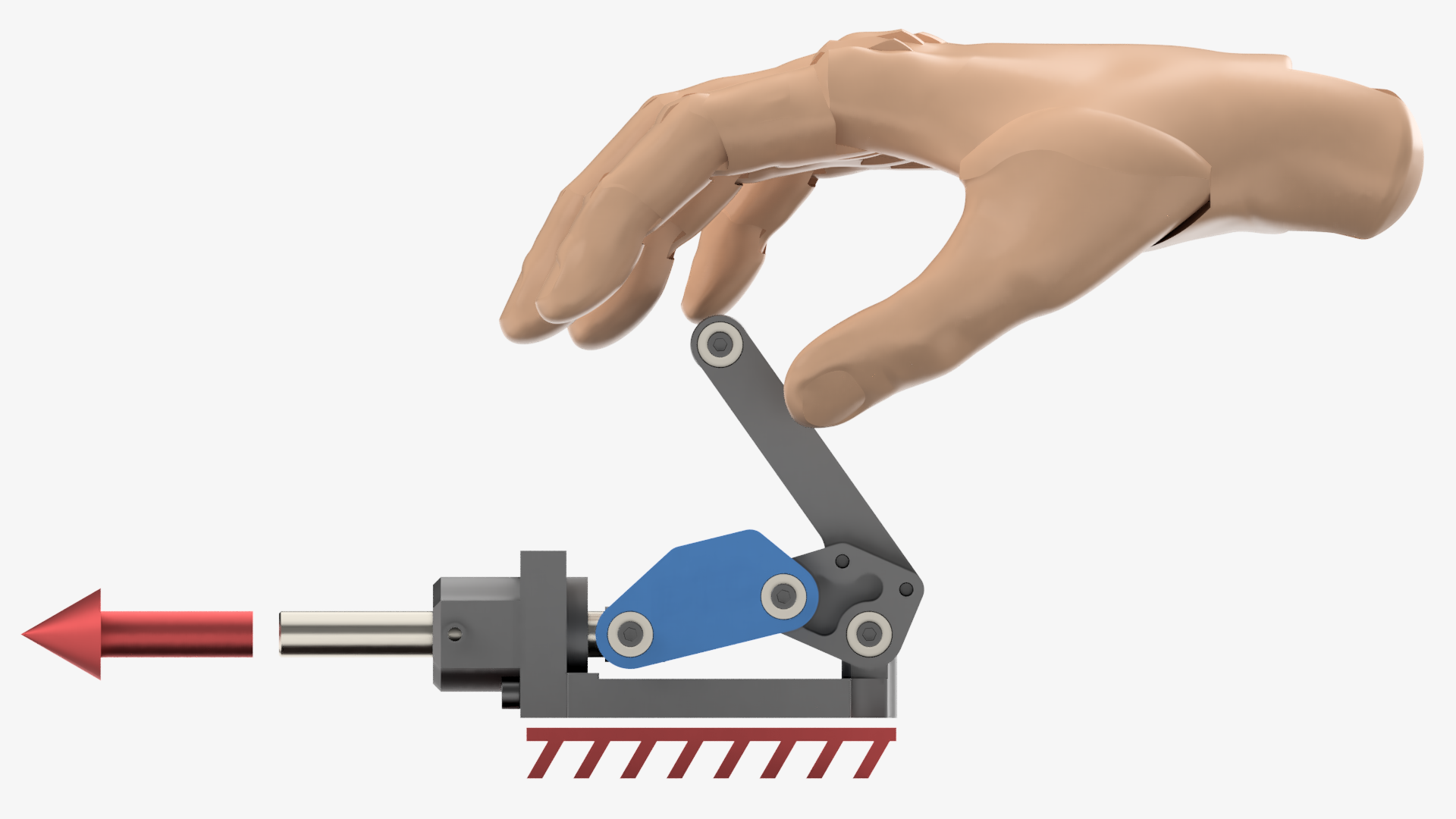

1000 series clamps provide over-center/ toggle clamping in the push direction only, and mount using a rear flange parallel to the clamping direction. There is no lock in the retract direction.
Max Force @ 45N (10lb/ft on handle) | 605N (136lb/ft) |
Stroke | 32.6mm (1.28in) |
Mounting Screws | M4 or #8 |
Mounting Screw Pitch | 25mm or 1in Pitch Grid |
Locking Direction | Push Only |
Spindle | 10mm Precision Ground |
Spindle Thread | M5 |
PDF 2D Drawing Files:
PTC-300-01000 Clamp Drawing v8
PTC-300-01000 Clamp BOM Drawing v4
Autodesk Fusion 360 File:
3D STEP Files:
Solidworks 2017 File:
