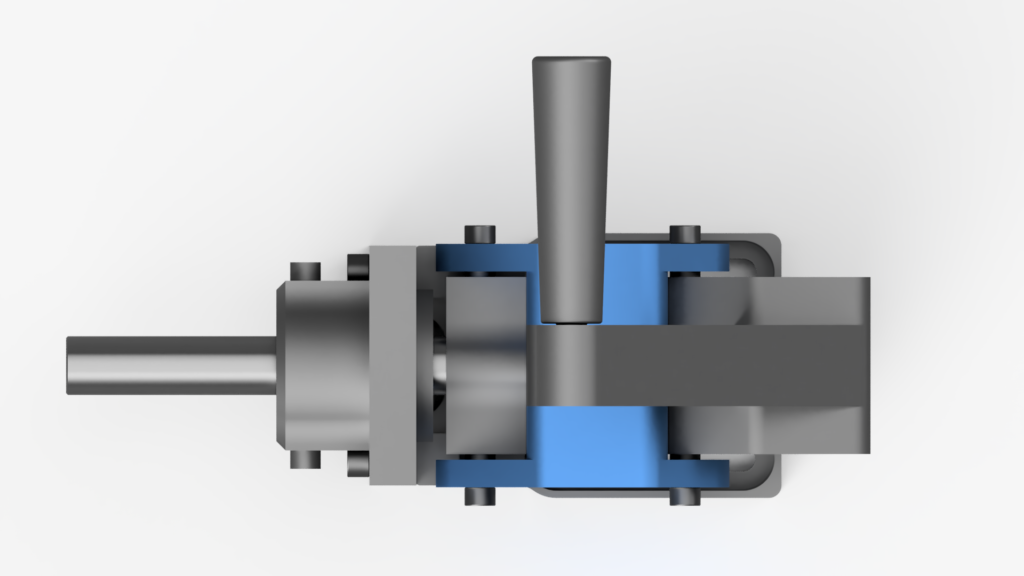

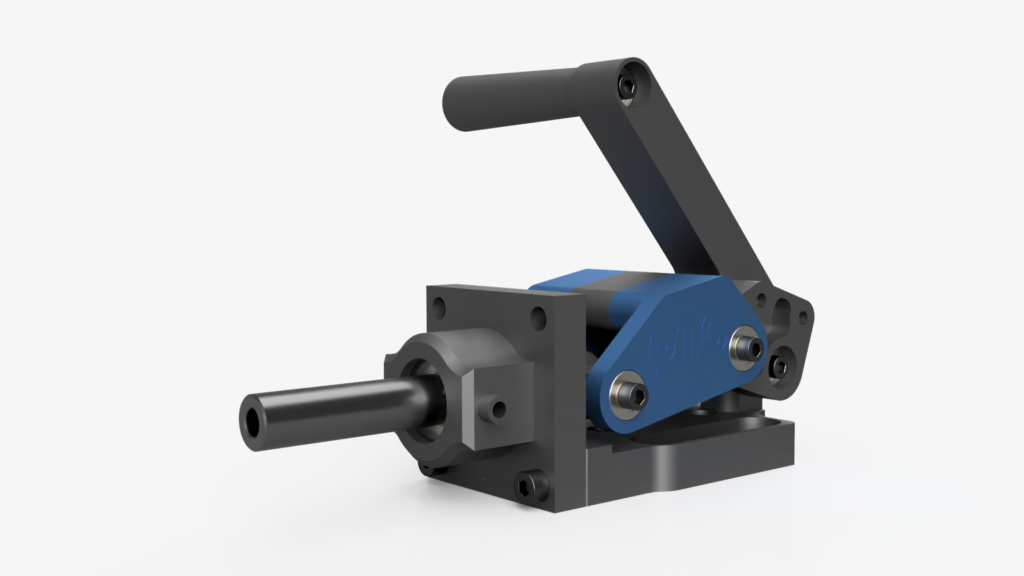

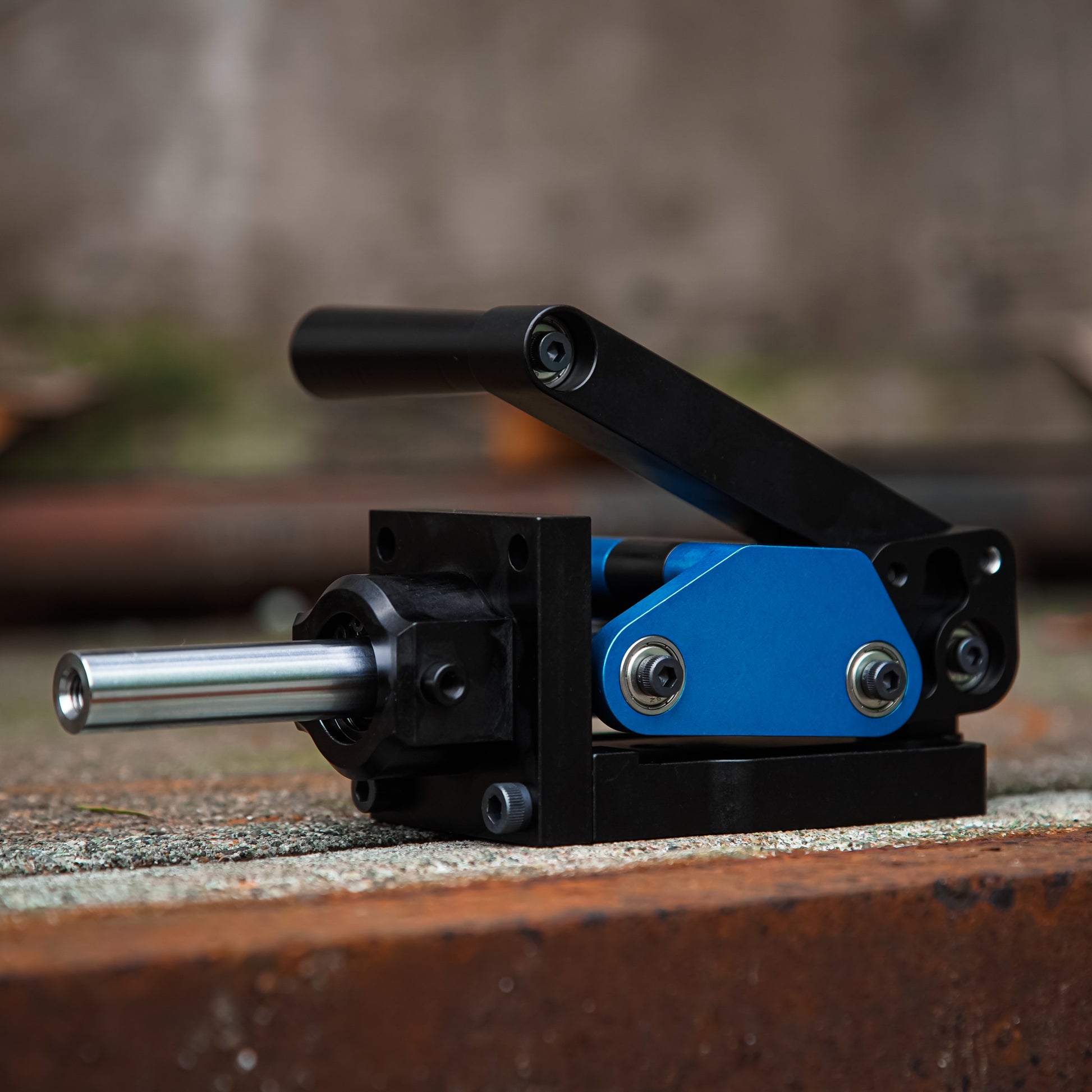

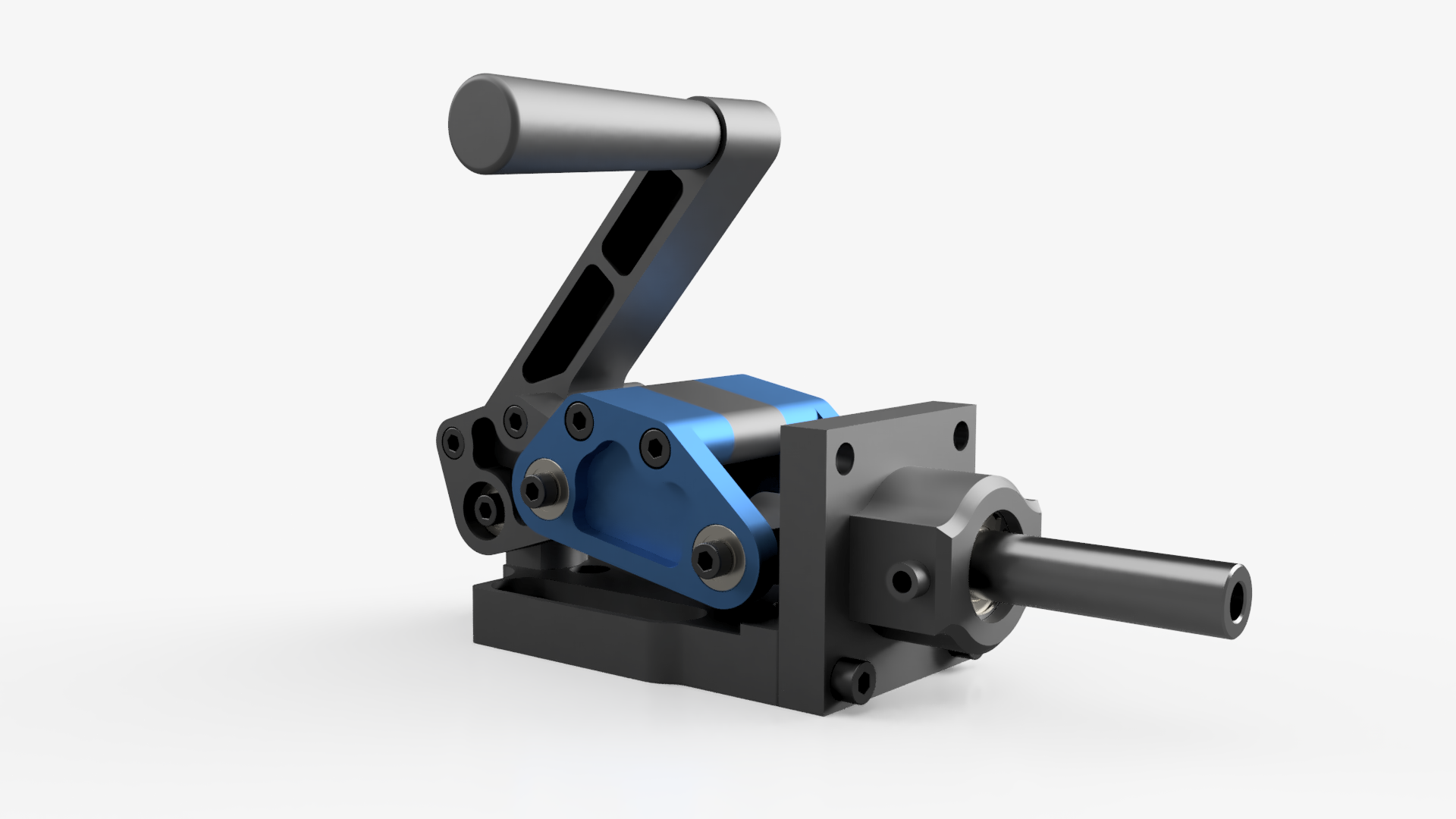

500 SIZE, 01000 SERIES, STRAIGHT-LINE

Our large 500 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

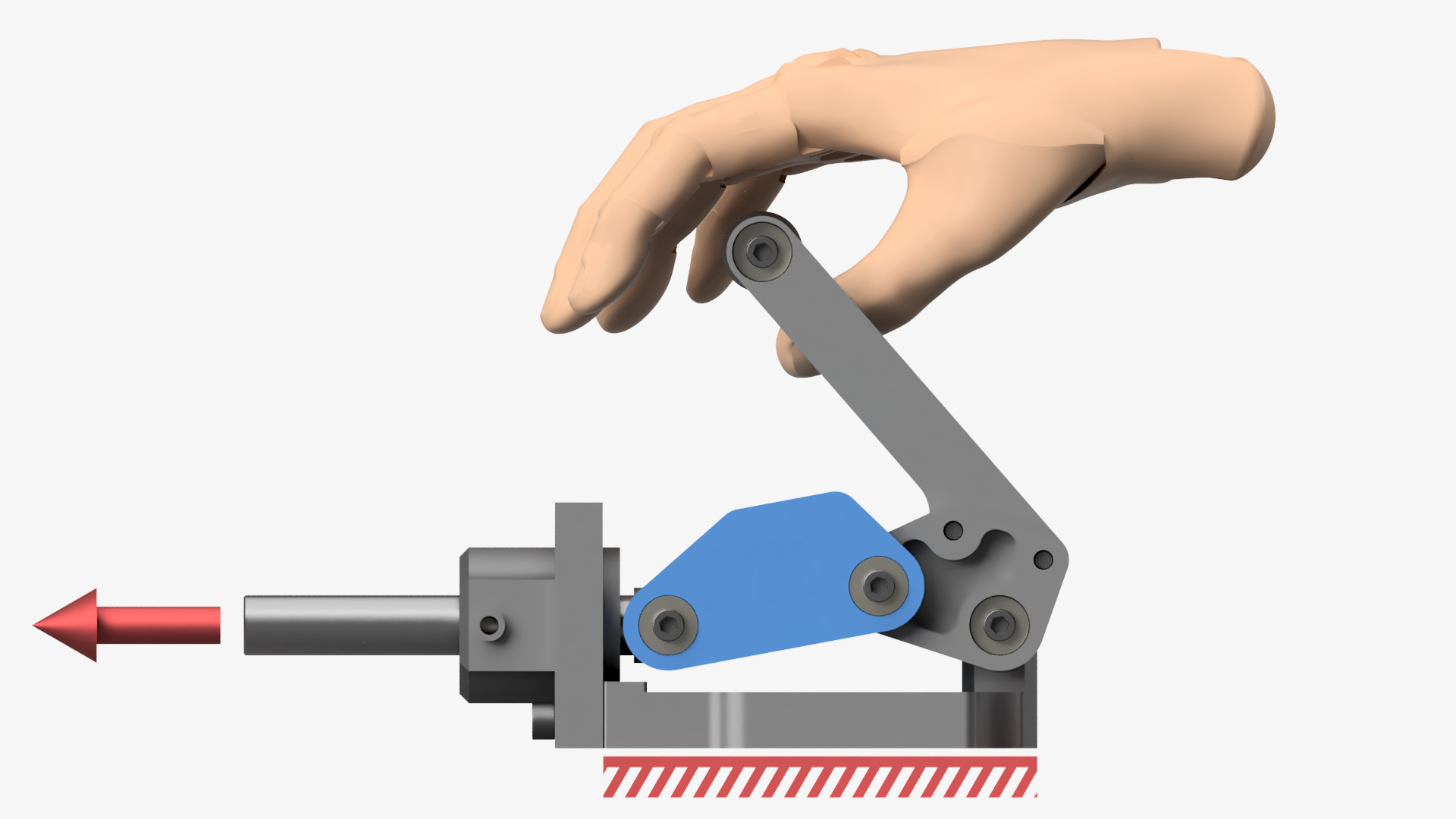

1000 series clamps provide over-center/ toggle clamping in the push direction only and mount using a rear flange parallel to the clamping direction. There is no lock in the retract direction.

PDF 2D Drawing Files:

PTC-500-01000 Clamp Drawing v9

PTC-500-01000 BOM Drawing v1

Autodesk Fusion 360 File:

PTC-500-01000

3D STEP Files:

PTC-500-01000 Open

PTC-500-01000 Closed

Solidworks 2017 File:

PTC-500-01000
