500 SIZE, 02000 SERIES, HOLD-DOWN
500 SIZE, 02000 SERIES, HOLD-DOWN
Regular price
$370.00 USD
Regular price
Sale price
$370.00 USD
Unit price
per
Couldn't load pickup availability

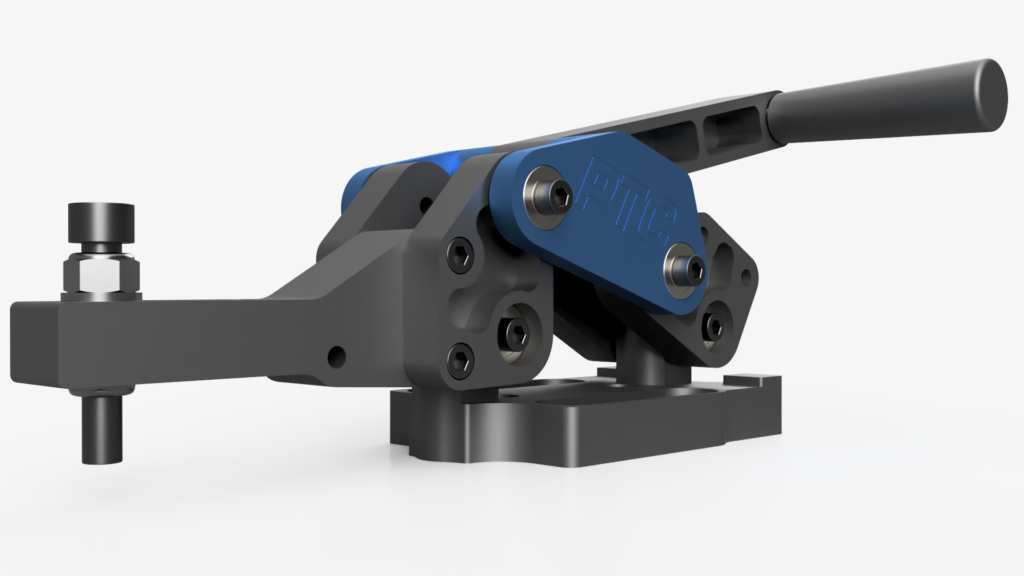

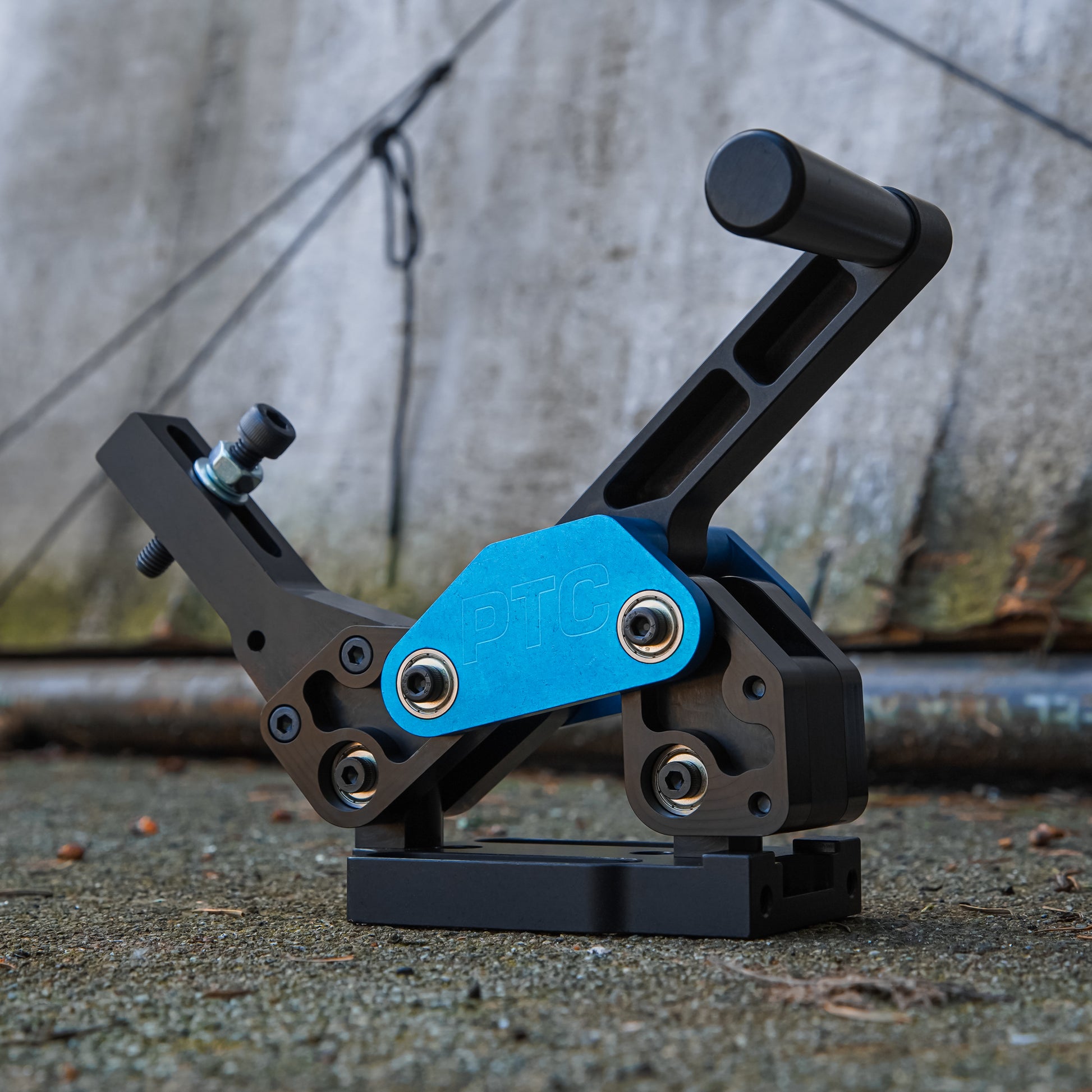

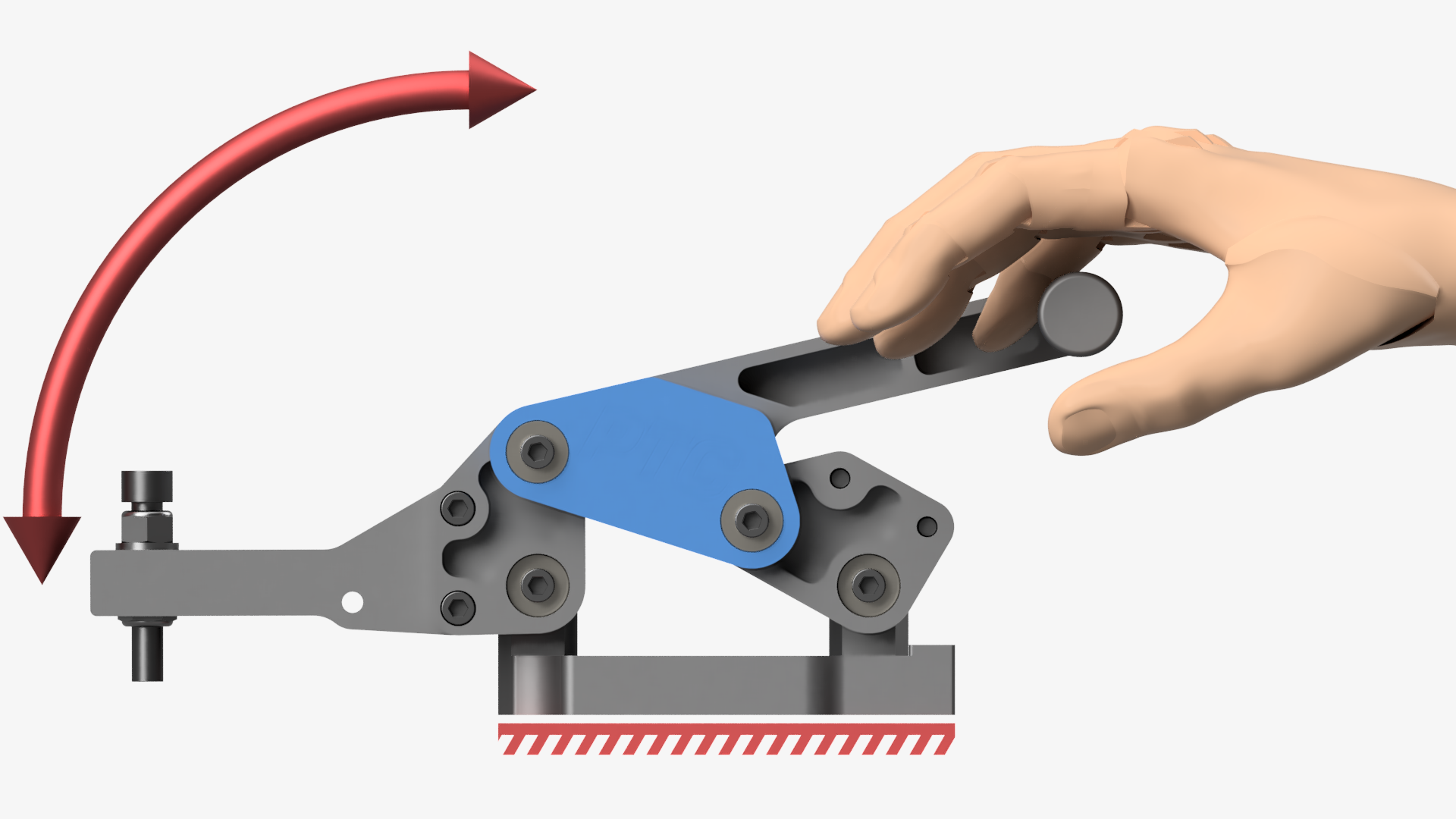

Our large 500 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

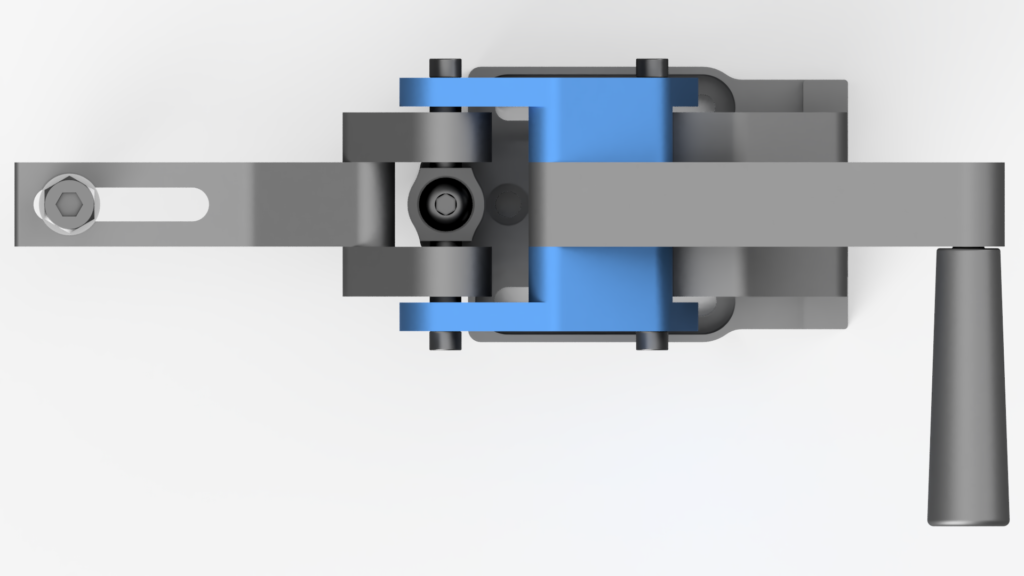

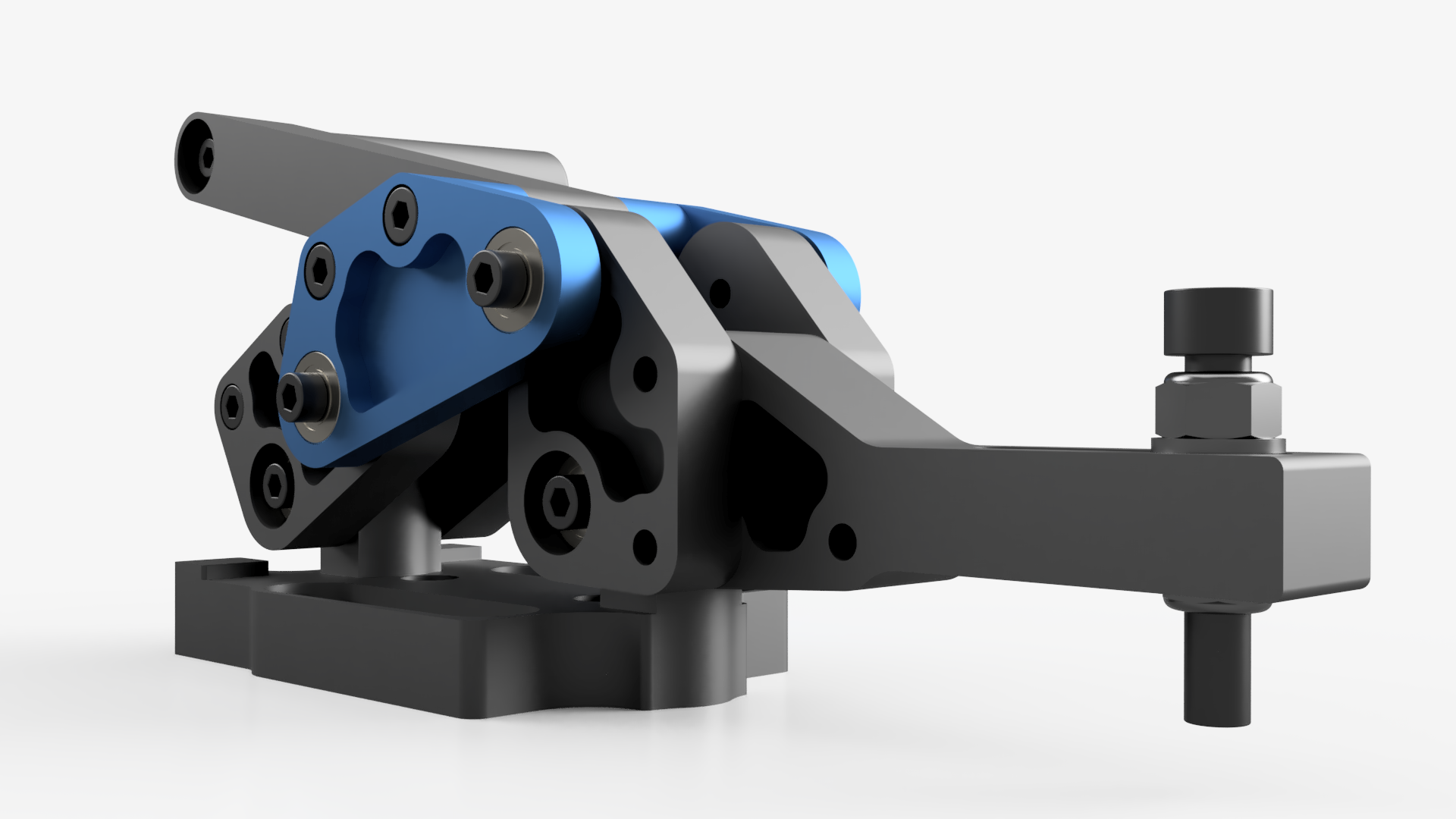

2000 series clamps provide hold-down clamping and mount using a base flange. There is no lock in the retract direction. For ultra-low profile use the base can be removed and the clamp components mounted directly to a base plate with two screws. This clamp can also be reconfigured as a 2100 series with no additional parts.
| Max Clamp Force @ 66N (15lb/ft on handle) | 311N (70lb/ft) |
| Stroke | 87.5 Deg |
| Mounting Screws | M6 or 1/4-20 |
| Mounting Screw Pitch | 50mm or 2 inch Pitch Grid |
| Locking Direction | Push Only |
| Clamp Pad | M8 SHCS |
PDF 2D Drawing Files:
PTC-500-02000 Clamp Drawing v5
PTC-500-02000 Clamp BOM Drawing v3
Autodesk Fusion 360 File:
3D STEP Files:
