500 SIZE, 03000 SERIES, STRAIGHT-LINE
500 SIZE, 03000 SERIES, STRAIGHT-LINE
Regular price
$335.00 USD
Regular price
Sale price
$335.00 USD
Unit price
per
Couldn't load pickup availability

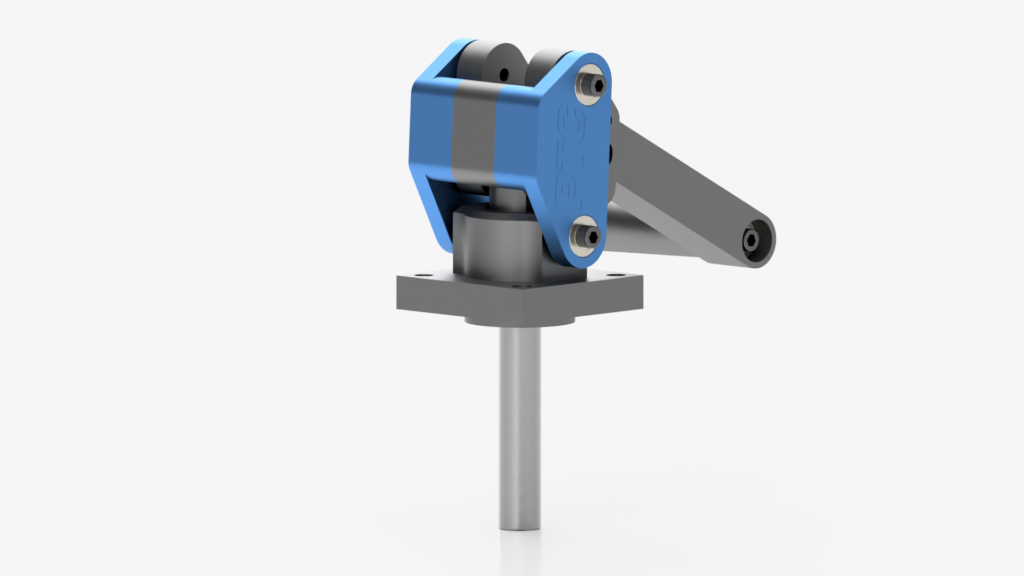

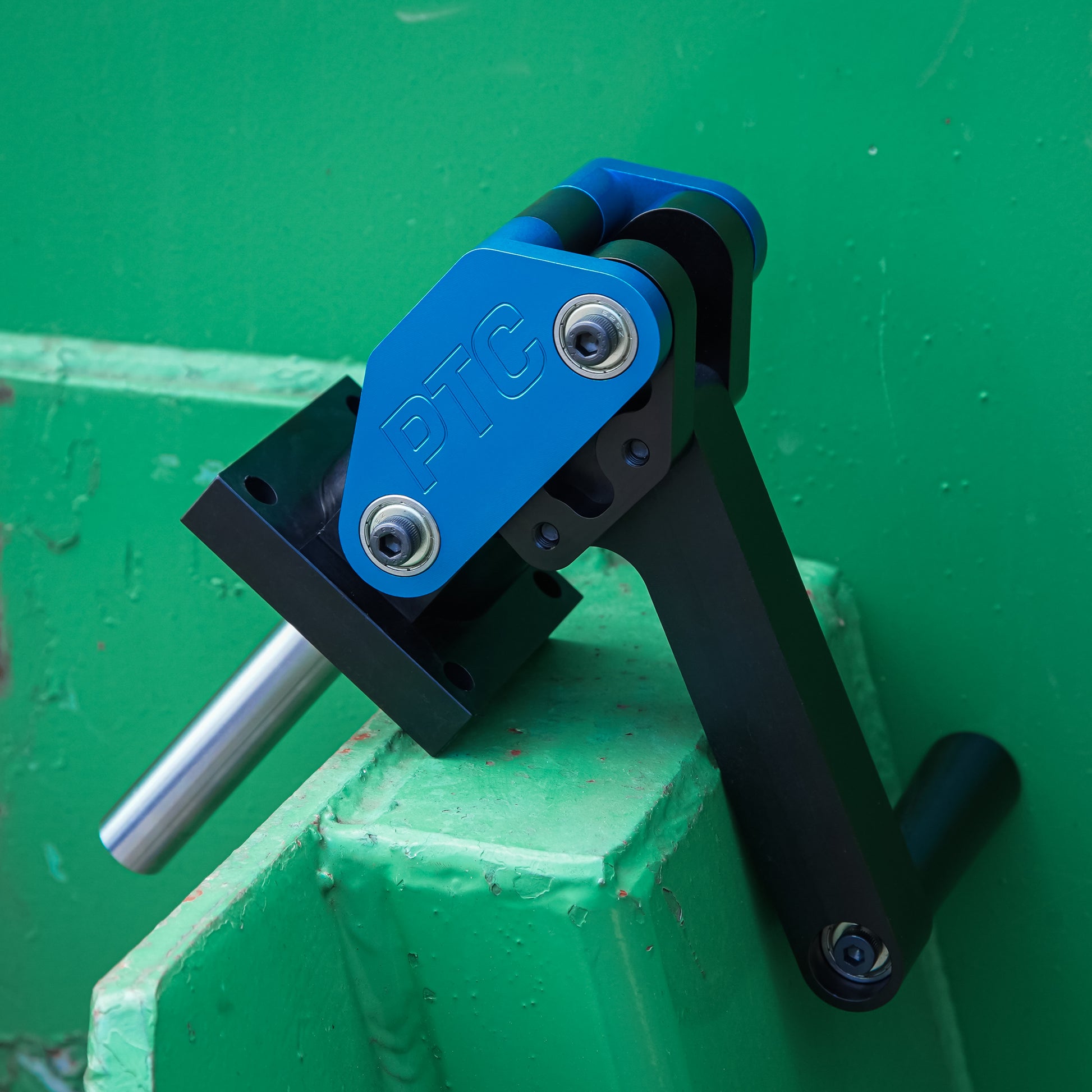

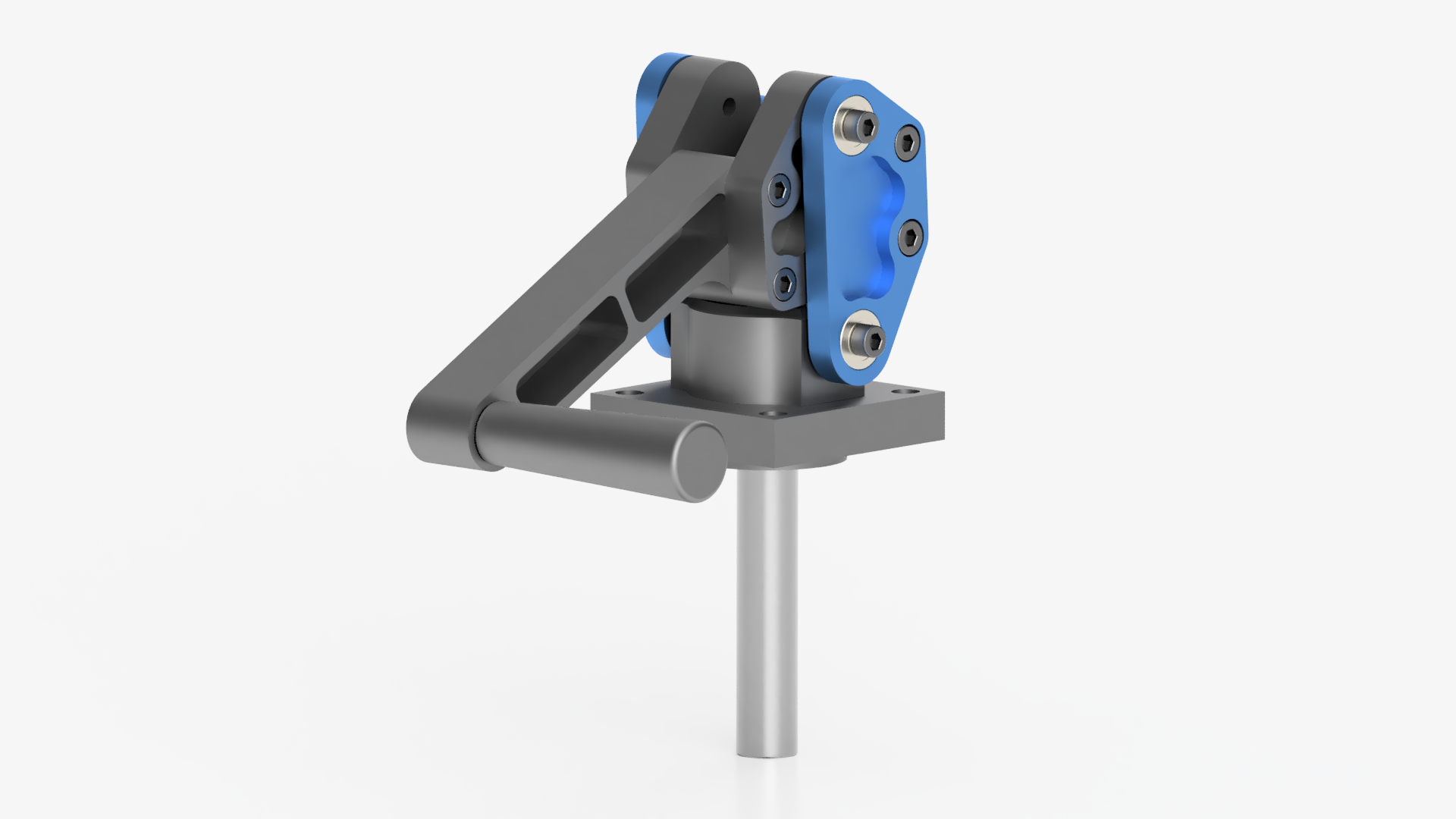

Our large 500 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

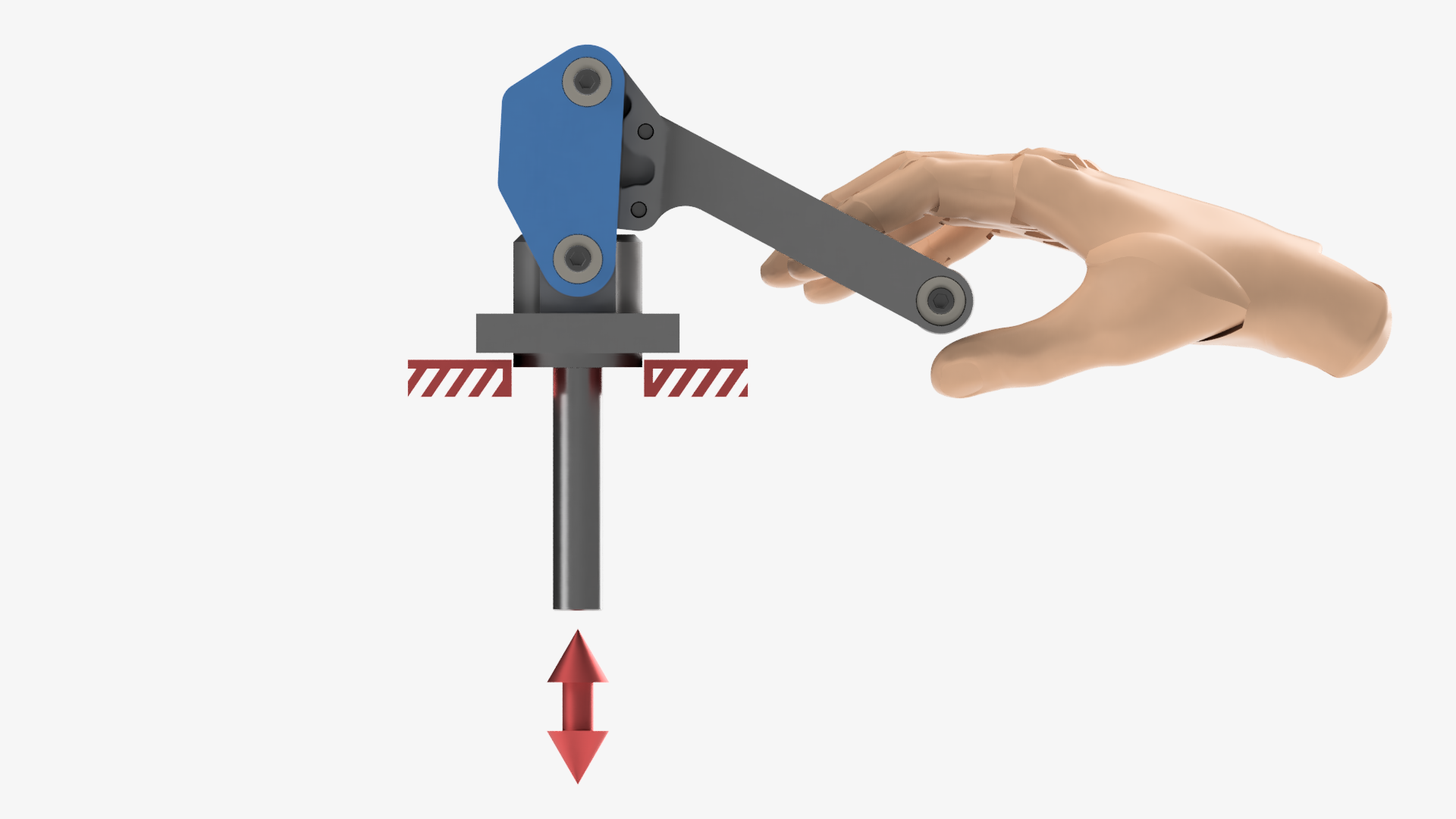

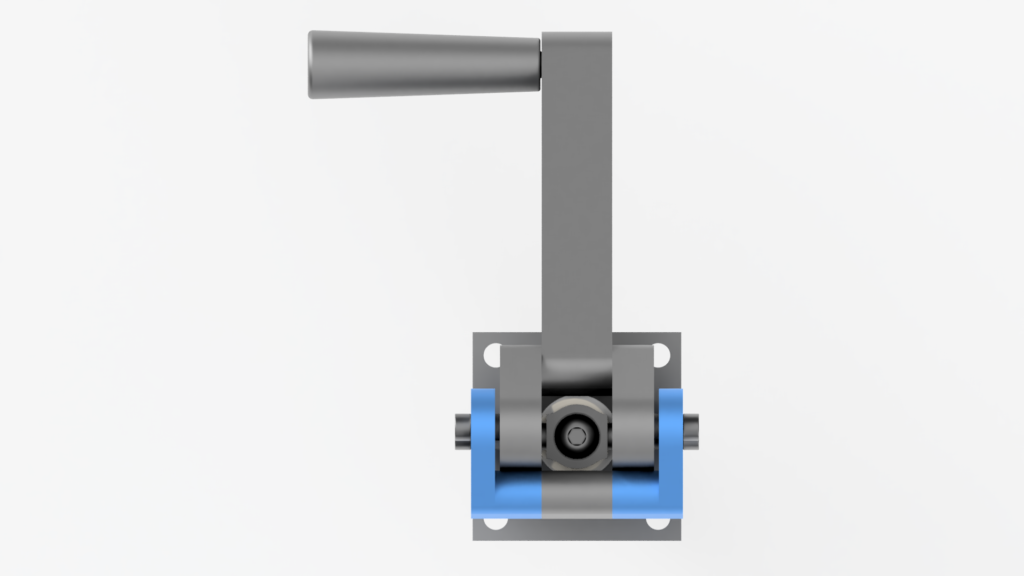

3000 series clamps provide over-center/ toggle clamping in the push and pull directions and mount using a front flange perpendicular to the clamping direction.
| Max Force @ 66N (16lb/ft on handle) | 1201N (270lb/ft) |
| Stroke | 66.5mm (2.62in) |
| Mounting Screws | M6 or 1/4-20 |
| Mounting Screw Pitch | 50mm or 2in Pitch Grid |
| Locking Direction | Push Only |
| Spindle | 16mm Precision Ground |
| Spindle Thread | M8 |
PDF 2D Drawing Files:
PTC-500-03000 Clamp Drawing v6
PTC-500-03000 Clamp BOM Drawing
Autodesk Fusion 360 File:
3D STEP Files:
Solidworks 2017 File:
