500 SIZE, 03100 SERIES, STRAIGHT-LINE

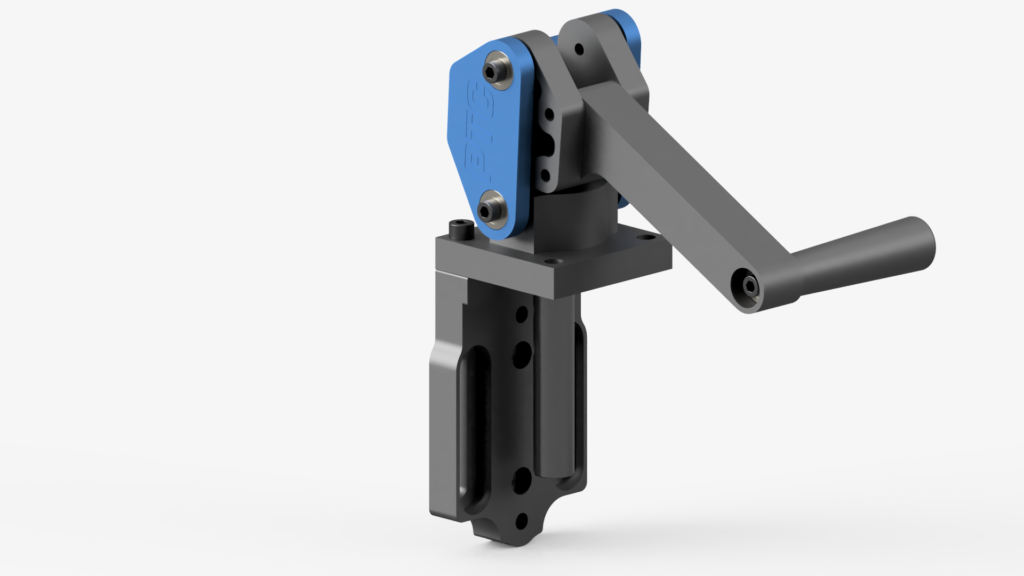

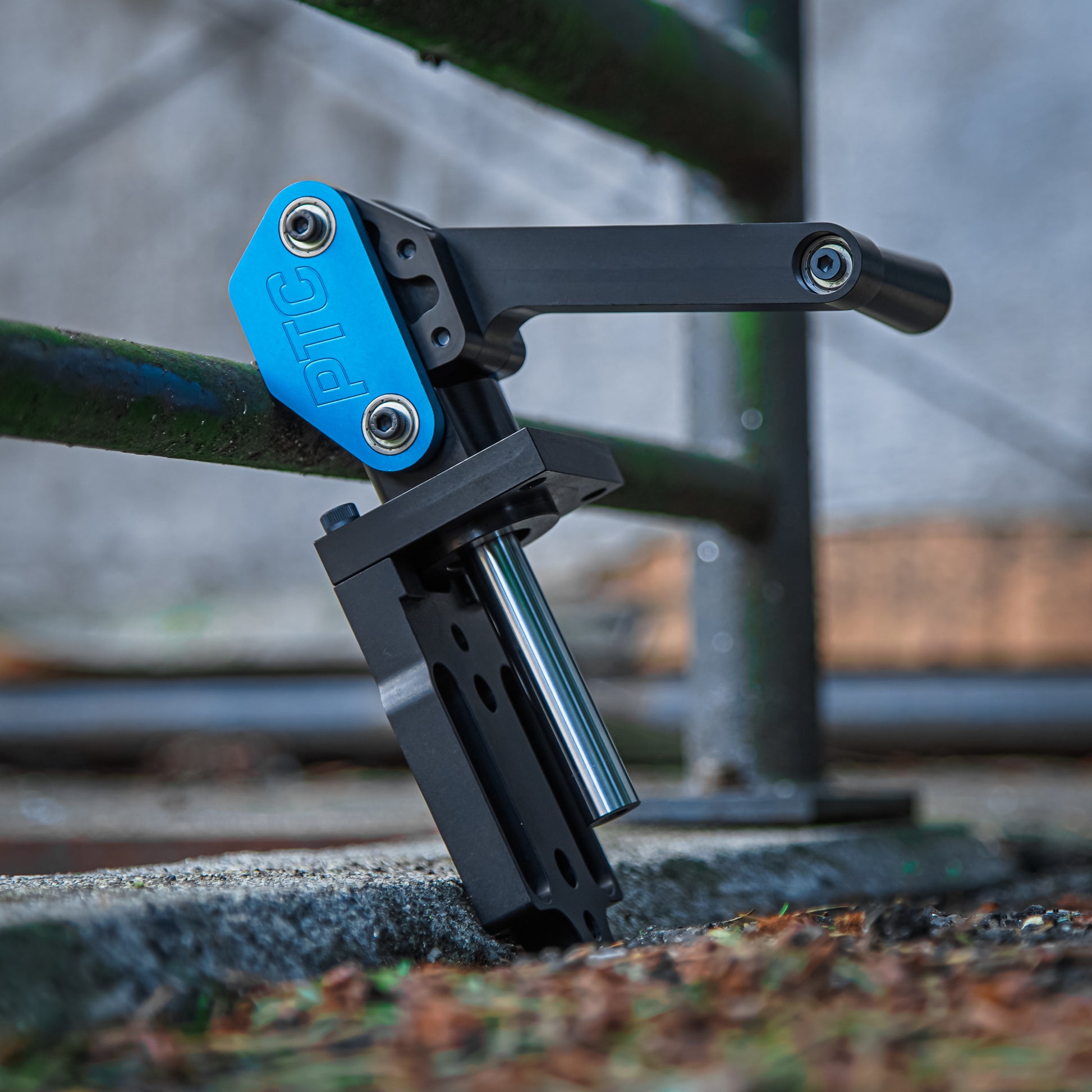

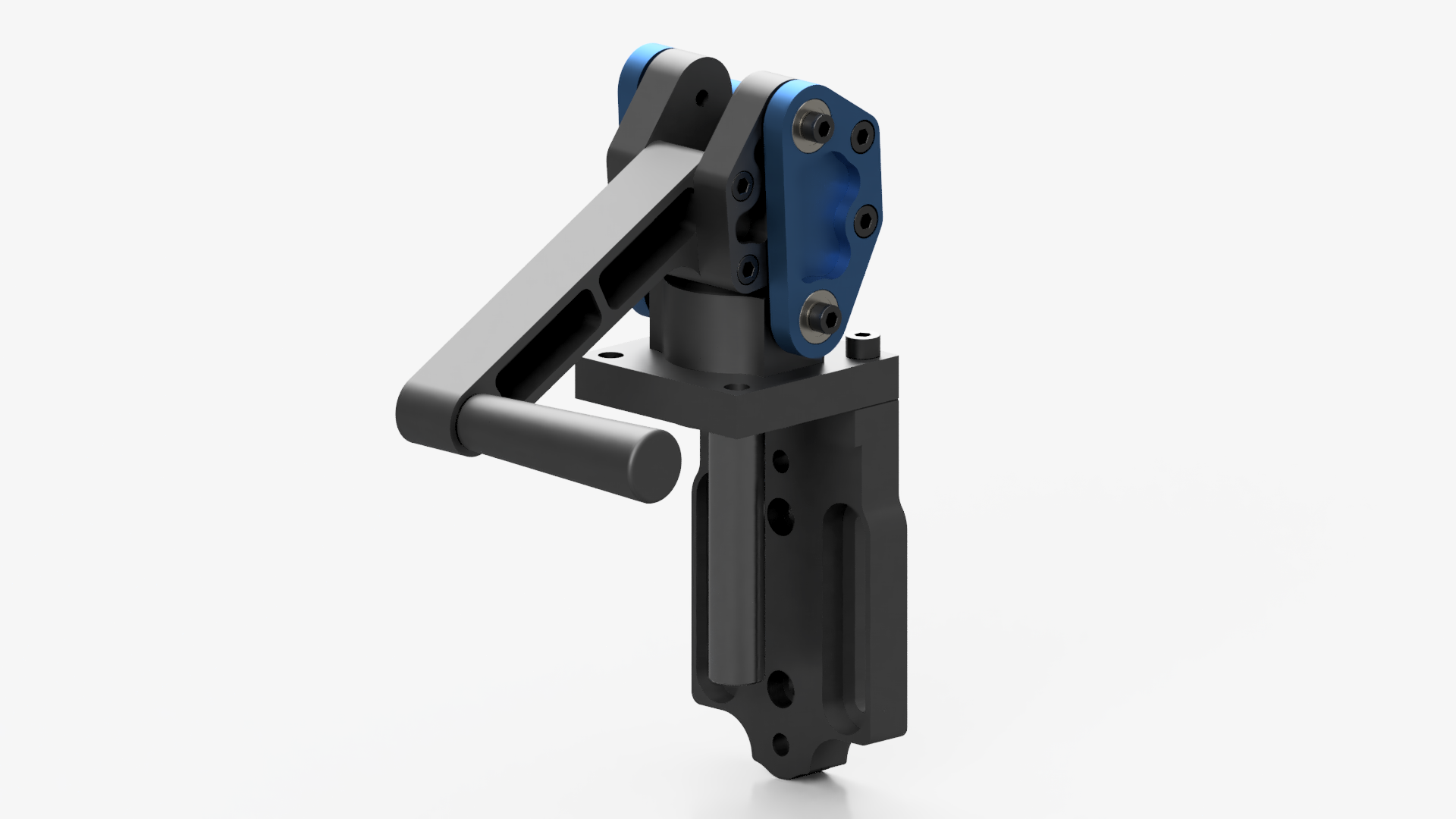

Our small and compact 300 size precision toggle clamps offer the ultimate in smooth and easy operation with rolling element bearings at all moving joints. Effortless over-center / toggle clamping for precision tasks or high repetition activities where minimizing operator fatigue is essential.

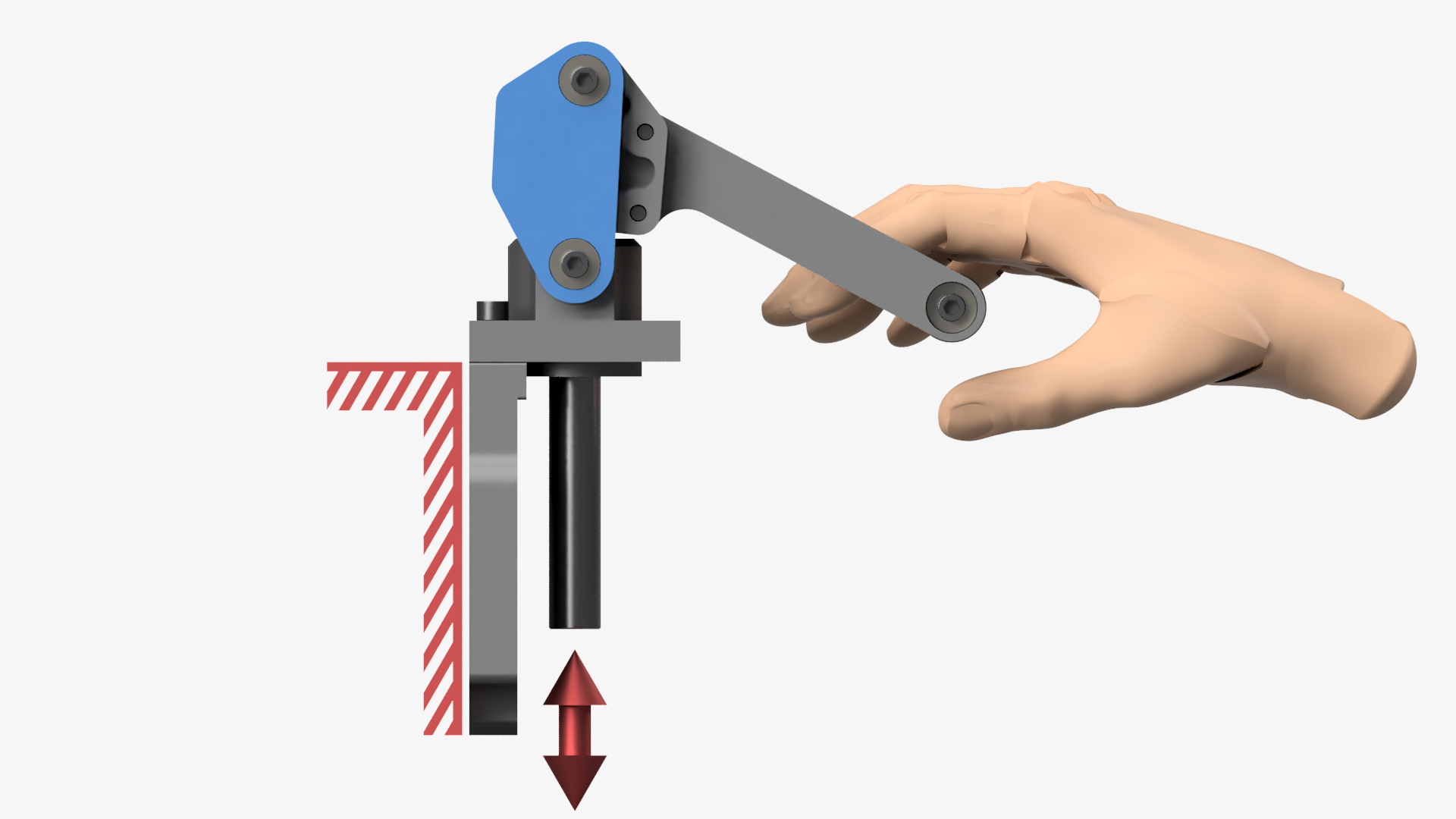

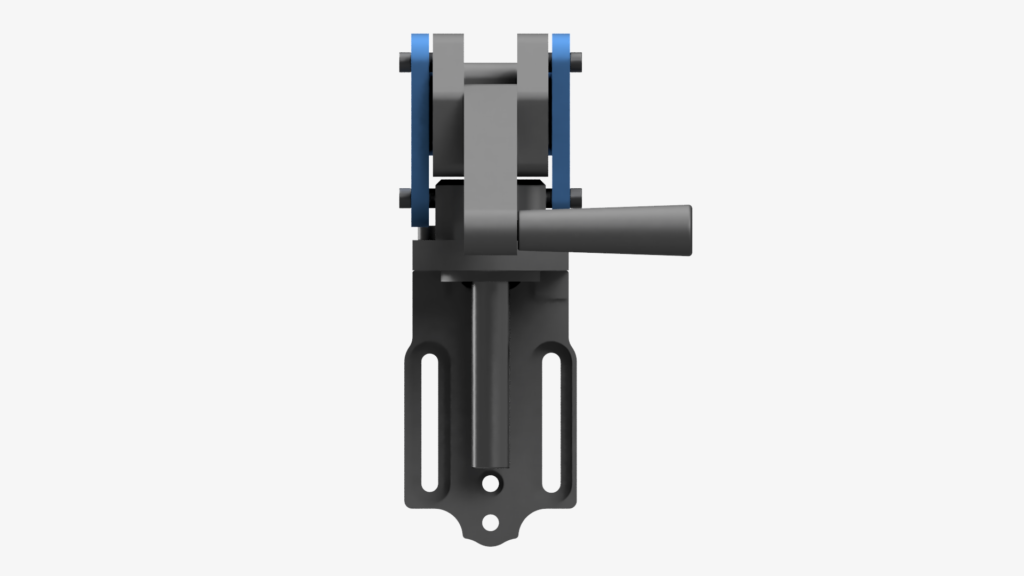

3100 series clamps provide over-center/ toggle clamping in the push and pull directions and mount using a flange parallel and alongside to the clamping direction. This clamp can also be reconfigured to a 3000 series with no additional parts.

PDF 2D Drawing Files:

PTC-500-03100 Clamp Drawing v4

PTC-500-03100 Clamp BOM Drawing v1

Autodesk Fusion 360 File:

PTC-500-03100

3D STEP Files:

PTC-500-03100 Open

PTC-500-03100 Closed

Solidworks 2017 File:

PTC-500-03100
